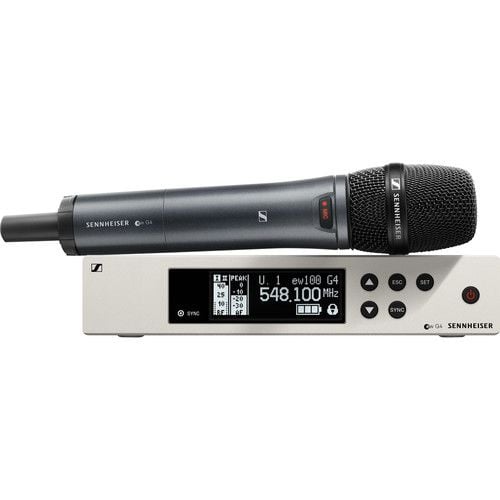

Sennheiser EW 100 G4-835-S Wireless Handheld Microphone System with MMD 835 Capsule (B: 626 - 668 MHz)

SKU
EW 100 G4-835-S-B
Be the first to review this product
  • For Presenters and Performers
  • MMD 835 Dynamic Cardioid Mic Capsule
  • Handheld Transmitter with Mute Switch
  • Interchangeable Capsule Design
  • True-Diversity Rackmount Receiver
  • 1680 Auto-Scan... Read More
AED 2,760.45 AED 2,629.00
Out of stock

Share it:

Notify me when this product is in stock
Orders shipped within 3 business days.

Secure Checkout with...

Sennheiser EW 100 G4-835-S Overview

The Sennheiser EW 100 G4-835-S is an easy-to-set-up rackmount wireless handheld microphone system that brings high-quality, reliable audio to presenters, clergy, lecturers, and performers working in business and educational settings, houses-of-worship, theaters, or on musical stages.

The EW 100 G4-835-S features a true diversity, half-rack receiver housed in a rugged, full-metal chassis. The receiver's auto-scan function searches a wide 42 MHz UHF tuning range with 1680 selectable frequencies available, seeking out a clean, interference-free channel for your audio transmission.

This system includes an SKM 100 G4-S handheld transmitter equipped with an interchangeable MMD 835 dynamic cardioid microphone capsule optimized for speech. The handheld transmitter provides up to 8 hours of operation on two AA batteries, with a fixed 30mW RF power output and a transmission range up to 330'. Up to 12 wireless mics can operate simultaneously in the same space, with the receivers linked together for fast, multi-channel frequency setup.

The EW 100 G4-835-S is backward-compatible with previous evolution systems. You can mix and match G4/G3/G2/G1 receivers or bodypack, handheld, and plug-on transmitters. It is also compatible with EW 300/500 systems.

Lightweight Handheld Transmitter with MMD 835 Cardioid Capsule

The MMD 835 dynamic capsule features a cardioid polar pattern that minimizes background noise and feedback.

The rugged, all-metal handheld transmitter features a mute function and can be locked out to prevent accidental changes during a performance. A backlit LCD displays essential information and provides fast menu access. The transmitter syncs to the receiver via infrared with a quick press on the Sync button.

The SKM 100 G4-S is powered via two AA batteries or a rechargeable BA 2015 Accupack battery (available separately). An LA 2 charging adapter (available separately) allows for recharging the Accupack without removing it from the transmitter—requires the L 2015 quick-charging unit (available separately).

The transmitter's interchangeable capsule design allows you to use a variety of optional dynamic and condenser mic capsules, with pickup patterns ranging from wide omnidirectional to narrow supercardioid —capsules include the MMD 835, MMD 845, MME 865, MMD 935, MMD 945, and MMD 42.

Easy-to-Operate Receiver with True-Diversity Reception

The robust, metal EM 100 receiver offers a high-contrast, black and white LCD. The display uses a streamlined menu system with a dedicated Escape button for quick menu navigation and shows battery status of the associated transmitter.

The system features 20 fixed frequency banks with up to 12 compatible frequency presets and 1 user bank with up to 12 user-programmable frequencies.

To prevent interference, the EM 100 receiver's true-diversity reception compares incoming signals on two independent receiver circuits to ensure optimal RF quality. To ensure crystal clear audio, Sennheiser's proprietary HDX compander technology maximizes the microphone's signal-to-noise ratio, while avoiding RF noise.

The built-in equalizer enables you to change the frequency response of the output signal; you can reduce the bass range and boost the treble range. The receiver also offers an adjustable output level range of 48 dB to match the audio input of your mixing board or PA system. Musicians will appreciate the built-in guitar tuner.

The back panel houses a balanced XLR output as well as an unbalanced 1/4" output. A kit is included for rackmount installation. The unit comes with a universal power supply and EU, US, UK, Korea, Australia, and China adapters.

Fast Multi-Channel Setup for Expanded System

To simplify and speed up your workflow, two RJ10 data networking ports allow you to daisy-chain up to 12 receivers and quickly perform a frequency setup for the entire multi-channel system via the Easy Setup function.

If you assign the frequencies manually, you can expand the setup to accommodate a maximum of 20 receivers. An RJ10 cable is included.

Enhance the Performance of Your System

The detachable antennas with BNC sockets allow you to create a larger system using up to four EM 100 receivers connected to a single pair of remote antennas. This setup requires the ASA 214 active antenna splitter (available separately).

Adding a pair of A 1031-U omnidirectional antennas or a pair of A 2003 UHF directional antennas increases the range of your system and offers increased protection against interference.

Add Functionality to Your System

Sennheiser offers a bodypack transmitter with variety of lavalier and headset microphone options to adapt your EW system as your needs evolve.
  • The discrete ME 2-II and MKE 2 lavalier mics provide exceptional clarity in spoken-word applications.
  • The lightweight ME 3-II is a comfortable, durable headset microphone for active presentations.
  • The Ci 1 instrument cable lets you connect the bodypack transmitter to a guitar or bass.
get real warranty on Sennheiser EW 100 G4-835-S Wireless Handheld Microphone System with MMD 835 Capsule (B: 626 - 668 MHz) at Digi Tech Trading LLC
It's always easy to shop for wireless Transmission system at Digi Tech Trading LLC because you can browse by best sellers, brand, price range, customer rating, or special offers. And you can take advantage of free shipping within UAE. Digi Tech Trading LLC Sennheiser EW 100 G4-835-S Wireless Handheld Microphone System with MMD 835 Capsule (B: 626 - 668 MHz) - your trusted source of filmmaking equipments
Write Your Own Review
You're reviewing:Sennheiser EW 100 G4-835-S Wireless Handheld Microphone System with MMD 835 Capsule (B: 626 - 668 MHz)
Your Rating

Sennheiser EW 100 G4-835-S Specs

System
Wireless Transmission Analog UHF
Number of RF Channels 1680
Included Transmitters 1 x Handheld
Diversity True Diversity
RF Frequency Band B: 626 - 668 MHz
RF Bandwidth 42 MHz
Frequency Step Size 25 kHz
Max Operating Range 330' / 100.6 m (Line of Sight)
Max Systems per Setup 20
Deviation ±24 kHz (Peak)
Modulation Wideband FM
Receiver
Form Factor Tabletop
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x Rod, Detachable (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4" TRS Female Unbalanced Output
Gain Range 48 dB (3 dB Steps)
Audio Output Level XLR Output:
+18 dBu (Balanced)
1/4" Output:
+12 dBu (Unbalanced)
Network I/O 2 x RJ10
Network Protocols Manual IP
Squelch Adjustable, 5 to 25 dBμV
Adjacent Channel Isolation >65 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 VDC at 300 mA (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 0.2 A
Display & Indicators 1 x Backlit LCD (AF Level, Channel, Frequency, Mute, RF Level, Transmitter Battery Status)
Housing Metal
Operating Temperature 14 to 131°F / -10 to 55°C
Dimensions 8.3 x 1.7 x 7.5" / 212 x 43 x 190 mm
Weight 2.2 lb / 980 g
Transmitter 1
Transmitter
Form Factor Handheld
RF Output Power 30 mW
Audio I/O None
Muting Mute Switch
Audio Input Level 3 V RMS
Gain Range 60 dB (3 dB Steps)
Frequency Response 80 Hz to 18 kHz (Mic)
Sync Method IR
Antenna 1 x Internal (Handheld)
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Sennheiser Accupack (Not Included, Replaceable)
Approx. Battery Life 8 Hours (Alkaline)
Display & Indicators 1 x Backlit LCD (Audio Level, Battery Status, Channel, Group, Mute, Signal Strength)
Housing Metal
Operating Temperature 14 to 131°F / -10 to 55°C
Dimensions 2 x 10.4" / 50 x 265 mm
Weight 15.9 oz / 450 g (with Batteries)
Microphone
Form Factor Handheld Capsule
Color Black
Sound Field Mono
Capsule Dynamic
Polar Pattern Cardioid
Maximum SPL 154 dB SPL Peak
Sensitivity 2.1 mV/Pa
General
Packaging Info
Package Weight 6.65 lb
Box Dimensions (LxWxH) 16.05 x 12.7 x 3.35"
  • Sennheiser EW 100 G4-835-S Wireless Handheld Microphone System with MMD 835 Capsule (B: 626 - 668 MHz)
  • Sennheiser EM 100 G4 Wireless Receiver (B: 626 - 668 MHz)
  • Sennheiser SKM 100 G4-S Handheld Wireless Microphone Transmitter with Mute Switch, No Mic Capsule (B: 626 - 668 MHz)
  • Sennheiser MMD 835 Cardioid Dynamic Capsule for Handheld Transmitters (Black)
  • Sennheiser MZQ1 Clip for SKM Wireless Handheld Microphones
  • 2 x Rod Antennas
  • RJ10 Cable
  • Sennheiser NT 12-5-CW Universal Power Supply for XSW and EW G4 100 Series Receivers
  • 2 x AA Batteries
  • Rackmount Kit
  • Limited 2-Year Warranty
