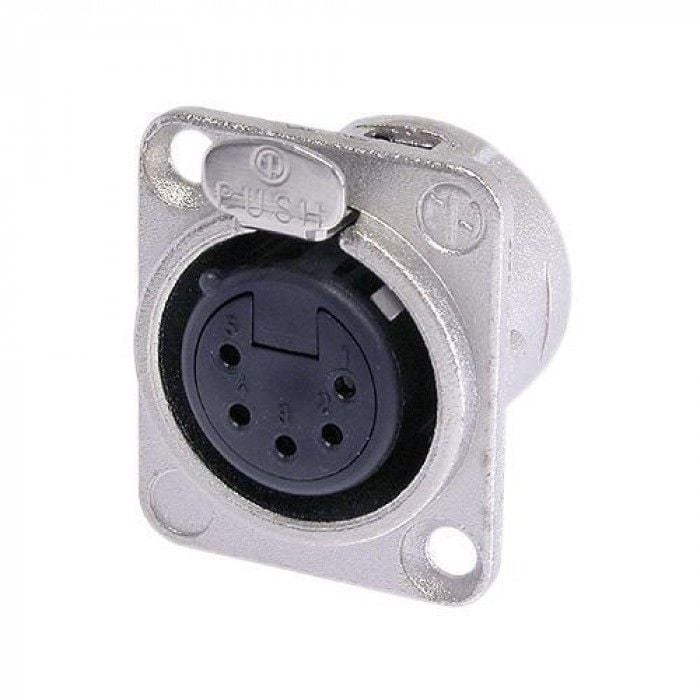

NEUTRIK 5 Pole Female Receptacle, Solder Cups, Nickel Housing, Silver Contacts
Out of stock
SKU
NC5FD-L-1
AED 47.25
AED 45.00
5 pole female receptacle, solder cups, Nickel housing, silver contacts
Universal D-size metal body XLR panel mount series. UL recognized... Read More
- Robust "D" metal shell
- Standardized D sized 24 mm panel cutout
- Solder cups on 3 - 7 pole version
It's always easy to shop for Cables & Adapters at Digi Tech Trading LLC because you can browse by best sellers, brand, price range, customer rating, or special offers. And you can take advantage of free shipping within UAE. Digi Tech Trading LLC NEUTRIK 5 Pole Female Receptacle, Solder Cups, Nickel Housing, Silver Contacts - your trusted source of filmmaking equipments
| Manufacturer | Nutrik |
|---|
Write Your Own Review
Technical Information
| Product | |
| Title | NC5FD-L-1 |
| Connection Type | XLR |
| Gender | female |
| Electrical | |
| Capacitance between contacts | ≤ 7 pF |
| Contact resistance | ≤ 5 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 7,5 A |
| Rated voltage | < 50 V |
| Mechanical | |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 1.0 mm² |
| Wiresize | max. 18 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Chassis shape | D |
| Material | |
| Contact plating | 2 µm Ag over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Environmental | |
| Approvals | UL |
| Flammability | UL 94 HB |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
