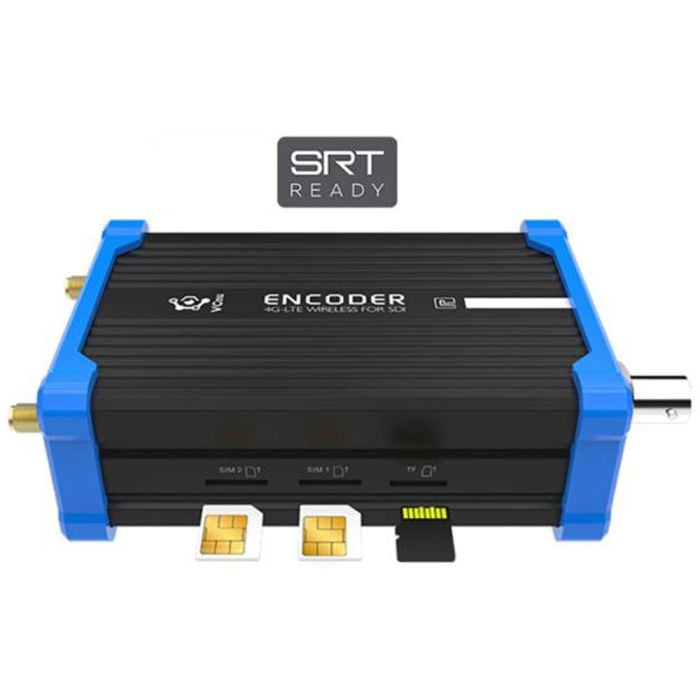

Kiloview 4G Bonding SDI Video Encoder for Outdoor Live or IRL Streaming (North America Only)

SKU
KVW-P1
Be the first to review this product
  • Dual-Stream Output, Main and Sub
  • 2 x Internal, 2 x External 4G Antennas
  • Convert SDI to IP
  • Simultaneously Stream to 16 Platforms
  • Wi-Fi and RJ45 Outputs
  • Supports up to... Read More
AED 3,430.35 AED 3,267.00
Pre-Order to secure your piece

Share it:

Notify me when this product is in stock
Orders shipped within 3 business days.

Secure Checkout with...

Kiloview P1 Overview

Simultaneously stream your Full HD video to up to 16 x platforms with this 4G Bonding SDI Video Encoder for Outdoor Live or IRL Streaming from Kiloview. The small, portable unit inputs 3G-SDI video up to 1080p60 and outputs the signal over cellular bonding, for North America only, as well as via Wi-Fi and Ethernet.

It supports RTMP/HLS/SRT/TS streaming media protocols, allowing it to work with a variety of platforms. Powered by an internal battery, the encoder supports embedded audio and 3.5mm analog audio input and output in ACC or G.711 format. It features a microSD card slot for recording your video, and it supports PTZ control over USB.

Note:
North America Only is for USA and Canada; South America Only is for countries except the USA and Canada. Other countries like European countries are with other modules.
Up to 5 Connections
2 x Internal 4G Cellular + 2 x USB 4G Cellular (LAN) + 1 x Wi-Fi (+ 1 RJ45) supported and it's free configurable to any desired network
Cellular Bonding
With the patented bonding algorithm with KiloLink, P series encoders can automatically balance the data of all connections and adjust the bit rate accordingly to ensure a reliable streaming. In addition, the SDI can support Wi-Fi hotspot for data and file transmission.
Self-Deploy Bonding Cloud with Device Management
  • Kiloview provides the bonding software for free; it's available for deployment on your own server or cloud-based server.
  • With KiloLink Server, you can manage all your registered devices—monitoring device status, preview a stream, parameter settings, firmware updating, port forwarding, and so on—on the server end. Real-time connection status and data statistics are also available on server end.
  • It's easy to manage with a single QR code.
Ultra-Low Latency for End-to-End Video Transmission
With optimized technology, Kiloview P series offers a ultra-low latency video streaming experience, which is suitable for remote production, IRL streaming, or audience interaction with high quality. End-to-end latency with 4G-bonding server is less than one-second under normal working conditions.
RSTP, RTMP, SRT, HLS, and TS-UDP
No matter if you are using a single connection or the bonding connection, with Kiloview P series, you can not only stream your video to YouTube/Facebook and other platforms with RTMP(S), but also transmit your video remotely by SRT and other workflows using different protocols such as RTSP, UDP, and HLS. Outdoor streaming was never so easy.
Multiple Platform Streaming
Kiloview P series encoder supports streaming to 16 platforms simultaneously by configuring the main and sub-stream in the web console, that means you can stream to all the popular platforms with the same content. (Main stream resolution up to 1080p60, sub-stream resolution up to 720p60).
Video Rotate/Crop and Image Overlay
With FPGA processing unit, it can easily realize the functions of rotating and cropping for vertical/horizontal video, which makes it social media friendly. You can also mirror the stream or adjust the color. Moreover, you can set your overlay image at any position, such as adding a logo, text, etc.
get real warranty on Kiloview 4G Bonding SDI Video Encoder for Outdoor Live or IRL Streaming (North America Only) at Digi Tech Trading LLC
It's always easy to shop for Converters at Digi Tech Trading LLC because you can browse by best sellers, brand, price range, customer rating, or special offers. And you can take advantage of free shipping within UAE. Digi Tech Trading LLC Kiloview 4G Bonding SDI Video Encoder for Outdoor Live or IRL Streaming (North America Only) - your trusted source of filmmaking equipments
Write Your Own Review
You're reviewing:Kiloview 4G Bonding SDI Video Encoder for Outdoor Live or IRL Streaming (North America Only)
Your Rating

Kiloview P1 Specs

Antenna Ports 2 x RP-SMA
Video I/O 1 x BNC (3G-SDI) Input
HDCP Support Not Specified by Manufacturer
Embedded Audio SDI
Audio I/O None
Power I/O 1 x Barrel Input
Media/Memory Card Slot Single Slot: microSD/microSDHC
Wireless
Latency < 67 ms
Wi-Fi Yes
App Compatible Yes: Android Only
App Name: KiloViewAPP
Functionality: Adjust Settings, View Live Feed
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
4G LTE Yes
5G NR Yes
IP Encoding
IP Video H.264/MJPEG: 1280 x 720 to 1920 x 1080
IP Audio AAC-LC:
Transport Protocols HLS, RTMP, RTP, RTSP, SRT
Simultaneous Streams 5 Streams
Power
DC Input Power 12 VDC at 1 A
Built-In Battery 6800 mAh
Power Consumption 6.5 W
Mounting
Mounting 1 x Cold Shoe
Environmental
IP Rating None
Operating Temperature -4 to 113°F / -20 to 45°C
General
Dimensions 4.5 x 3 x 1.4" / 115 x 75 x 35 mm
Weight 14.1 oz / 400 g, Including Battery
Packaging Info
Package Weight 2 lb
Box Dimensions (LxWxH) 8 x 6.2 x 3.2"
  • Kiloview 4G Bonding SDI Video Encoder for Outdoor Live or IRL Streaming (North America Only)
  • 2 x 4G Antenna
  • 12 VDC Power Supply
  • USB-C Cable
  • USB to RJ45 Converter
  • Cold Shoe Rack
  • Cold Shoe Bracket
  • Limited 1-Year Warranty
