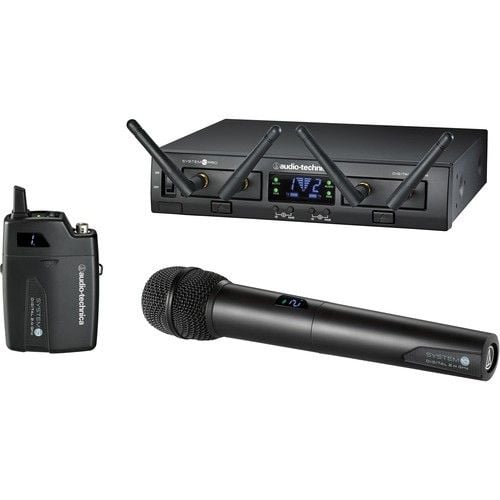

Audio-Technica ATW-1312 System 10 PRO Rack-Mount Digital UniPak/ Handheld Combo System (2.4 GHz)

The System 10 PRO ATW-RC13 from Audio-Technica is a digital 24-bit/48 kHz wireless receiver that operates on the 2.4 GHz ISM band. It can be used to capture audio when paired with a transmitter and microphone for applications such as live stage, theater, DJ setups, and more.

The System 10 PRO features a half-rack chassis that allows you to mount one or two receiver units; however, the receiver units can be released from the chassis and mounted remotely (up to 328' away) via an Ethernet cable. Up to five chassis (10 receiver units) can be linked using a RJ12 cable, creating a multi-channel system with up to 10 channels being used simultaneously.

In addition, other features include an easy-to-read display for easy setup, and three levels of diversity, namely frequency, time, and space, to help deliver a professional-quality sound. Frequency Diversity sends the signal on two allocated frequencies. Time Diversity sends the signal in multiple time slots. Space Diversity uses two antennas on each transmitter and receiver unit, thus to help maximize signal integrity.

Each System 10 PRO rack-mount receiver includes a rack-mount adapter, receiver unit mounting brackets, one RJ12 cable, and an AC adapter.

The ATW-RU13 System 10 PRO Receiver Unit from Audio-Technica is a 24-bit/48 kHz digital module that operates in the 2.4 GHz range. It can be used when paired with a System 10 PRO rack-mount system chassis and transmitter/microphone (sold separately) to capture audio for applications such as presentations, lectures, boardrooms, live stage, theater, houses of worship, and more.

The ATW-RU13 receiver module provides easy setup with clear, natural sound quality and has three levels of diversity assurance, namely frequency, time, and space. This module can also be used remotely and linked via an Ethernet cable, and used up to 328' away from the chassis. The ATW-RU13 includes two antennas with one receiver holder.

The Audio-Technica ATW-T1001 is a digital wireless bodypack transmitter compatible with System 10 and System 10 Pro receivers. The compact transmitter delivers high-quality sound at 24-bit / 48 kHz resolution and features a lightweight plastic housing that is comfortable for presenters and performers to wear.

The unit features a Hirose 4-pin input connector, allowing you to plug in a compatible lavalier or headset microphone of your choice for hands-free presentations and performances, or a dedicated AT-GcW instrument cable for use with a guitar or bass (mics and cable available separately). The gain range is adjustable with the included screwdriver, allowing the unit to accommodate varying input levels. The power button toggles between mute and unmute statuses with a quick press and can be locked to prevent accidents.

The System 10 operates anywhere in the world in the 2.4 GHz spectrum, well away from potential TV and radio interference. The transmitter's RF output is fixed at 10mW and the unit offers a maximum transmission range of 200'. Three levels of diversity assurance—frequency, time, and space—ensure reliable audio transmission.

Syncing the transmitter to a receiver is simple; choose one of the ten system ID numbers on the receiver, then press the Pair buttons on the receiver and the transmitter, and that's it— you're ready to go. Up to 10 transmitters can be paired to a single receiver before the start of an event, allowing you to quickly switch between speakers by turning their respective transmitters on or off. The system LED displays the ID number while the indicator LED shows power, mute, and battery status.

The Audio-Technica ATW-T1002 System 10 Digital Wireless Hypercardioid Handheld Microphone/Transmitter is a high-fidelity wireless transmitter designed to provide presenters and musicians with advanced 24-bit operation, easy setup, and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, this digital transmitter offers easy operation. It also offers an easy-to-read digital ID display.

The System 10 wireless transmitter ensures clear communications by providing 3 levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on 2 dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses 2 antennas on the transmitter and receiver (sold separately) to maximize signal integrity. The ATW-T1002 handheld transmitter features a Unidirectional dynamic microphone element and has a Power/Mute switch, as well as an adjustable input level control.
