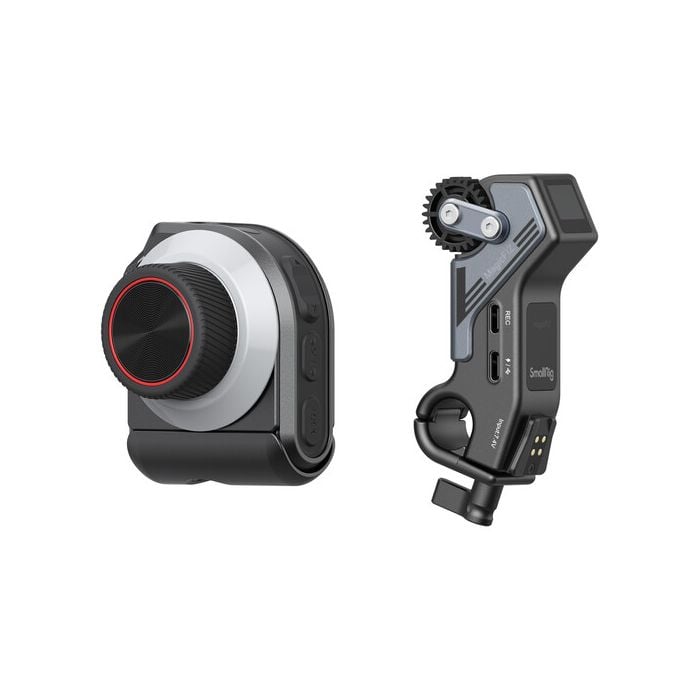

SmallRig MagicFIZ Wireless Follow Focus Basic Kit

SKU
3781
  • Wireless Handwheel Controller & Motor
  • L-Series Battery Plate, Handgrip Adapter
  • 15mm Rod Clamp, 15mm Rod, NATO Rail
  • 2 x Follow Focus Gear Rings, USB-C Cable
  • Removable Marking Disk, Carry... Read More
AED 1,155.00 AED 1,100.00
In stock
Orders shipped within 3 business days.

Secure Checkout with...

SmallRig MagicFIZ Overview

Get started with wireless follow focus control with this MagicFIZ Wireless Follow Focus Basic Kit from SmallRig. The kit includes everything you need to start controlling your lens focus using a precise handwheel controller and a high-torque focus motor. The kit also allows you to control run/stop on your camera using an optional cable.

Other features include wireless control from up to 328' away, an anti-interference algorithm, A-B stops, QC/PD fast charging, an 0.8 MOD cine gear, 20-hour operation, and a low-power OLED display. A carry bag is included to store and transport the entire kit.

Note:
This controller is only compatible with SmallRig Wireless Follow Focus System components.
SmallRig Wireless Handwheel Controller

Wirelessly control your follow focus motor from up to 328' away with this Wireless Handwheel Controller from SmallRig. The controller is part of the Wireless Follow Focus System ecosystem and connects to the separately available Wireless Receiver Motor for fine focus control. It features a built-in 1400mAh battery that allows the controller to be used for up to 20 hours.

Features of the handwheel controller include a power failure memory function to save recalibration, A-B point settings, a low-power OLED display, a replaceable marking disk, and a vibration warning function. Its wireless anti-interference algorithm allows a clean connection and provides ultra-low-latency control. The controller battery is charged via a separately available USB-C power cable.

Note:
This controller is only compatible with SmallRig Wireless Follow Focus System components.
Key Features
Built-in 1400mAh battery lasts approximately 20 hours
Power-failure memory
Ultra-low-power OLED screen with user-friendly interaction
High-precision BLDC control algorithm and anti-interference encryption algorithm
Replaceable marking disk
SmallRig Wireless Receiver Motor

This Wireless Receiver Motor from SmallRig is a compact, wireless follow focus motor designed for use with the SmallRig Wireless Follow Focus System, including compatibility with the wireless handgrip and handwheel controller. The wireless motor features a clear 0.5" OLED display that provides calibration data and a standard 0.8 MOD cine gear to fit a wide variety of DSLR and cine lenses. When powered using a separately available PD power source, it features a strong torque up to 0.5 Nm.

The motor can be powered using its USB-C input by utilizing a separately available L-series battery plate, or you can use a D-Tap or DC cable to power from an external V-mount or Gold mount battery or battery plate. A second USB-C port can also pass run/stop controls to a compatible camera. It also supports PD/QC fast charge power sources up to 9V/18W. The motor can be mounted onto your rig using its single, built-in 15mm rod clamp.

Note:
This motor is only compatible with SmallRig Wireless Follow Focus System components.
Compatibility
49/52/55/58/62/67/72/77/82/86/80/85/90/95/114mm DSLR camera lens and cine lens
15mm rod support system
M0.8 lens and follow focus lens gear ring
Incompatible with non-SmallRig wireless follow focus system
PD/QC fast charging protocol
SmallRig L-Series Battery Plate for Wireless Follow Focus Motor

Power your wireless follow focus motor using an L-series battery using this L-Series Battery Plate from SmallRig. This lightweight battery plate accepts a separately available, high-capacity Sony NP-F/L-series type battery, and it provides power to your SmallRig wireless follow focus motor. The plate mounts directly onto the contacts on the motor, so there is no need for an additional cable.

get real warranty on SmallRig MagicFIZ Wireless Follow Focus Basic Kit at Digi Tech Trading LLC
It's always easy to shop for Zoom & Focus Control at Digi Tech Trading LLC because you can browse by best sellers, brand, price range, customer rating, or special offers. And you can take advantage of free shipping within UAE. Digi Tech Trading LLC SmallRig MagicFIZ Wireless Follow Focus Basic Kit - your trusted source of filmmaking equipments
Write Your Own Review
You're reviewing:SmallRig MagicFIZ Wireless Follow Focus Basic Kit
Your Rating

SmallRig Wireless Handwheel Controller Specs

General
Compatibility SmallRig Wireless Follow Focus System
SmallRig Wireless Receiver Motor
Display Type OLED, 0.96"
Inputs / Outputs
USB I/O 1 x USB-C (Charging Only) Female Input
Battery
Battery Chemistry Lithium-Ion
Battery Capacity 1400 mAh
Maximum Battery Life 20 Hours
Power
DC Input Power 5 to 12 VDC
Physical
Material of Construction Aluminum, ABS Plastic, Silicone
Dimensions 3 x 2.7 x 2.2" / 77 x 69 x 54.7 mm
Weight 6.2 oz / 177 g

SmallRig Wireless Receiver Motor Specs

General
Compatibility SmallRig Wireless Follow Focus System
SmallRig Wireless Handgrip
SmallRig Wireless Handwheel Controller
Inputs / Outputs
USB I/O 1 x USB-C (Power Only) Female Input
1 x USB-C Female Input/Output
Gear Pitch 0.8 MOD
Power
Power Source Battery (Not Included), USB (Not Included)
DC Input Power 5 to 16.8 VDC at 9 A
Physical
Mounting 1 x Single 15 mm Rod Clamp
Material of Construction Aluminum
Dimensions 4.3 x 2 x 1.3" / 108.2 x 50.1 x 32.1 mm
Weight 4.1 oz / 117 g

SmallRig L-Series Battery Plate For Wireless Follow Focus Motor Specs

General
Compatibility SmallRig Wireless Follow Focus Receiver Motor
Sony-Type NP-F550 Battery
Sony-Type NP-F750 Battery
Sony-Type NP-F970 Battery
Power
Power Source Battery
Battery Type 1 x Sony L-Series Lithium-Ion
Physical
Mounting 1 x Proprietary
Material of Construction ABS, PC
Dimensions 3.42 x 1.7 x 0.57" / 86.84 x 43 x 14.45 mm
Weight 0.6 oz / 16 g
  • SmallRig Wireless Handwheel Controller
    • Marking Disk
    • Limited 2-Year Warranty
  • SmallRig Wireless Receiver Motor
    • Limited 2-Year Warranty
  • SmallRig L-Series Battery Plate for Wireless Follow Focus Motor
    • Limited 2-Year Warranty
  • Handgrip Adapter
  • 15mm Rod
  • Rod Clamp with NATO Rail
  • 2 x Snap-On Follow Focus Gear Ring
  • USB-C Cable
  • Wrench
  • Carry Bag
  • Limited 1-Year Warranty
