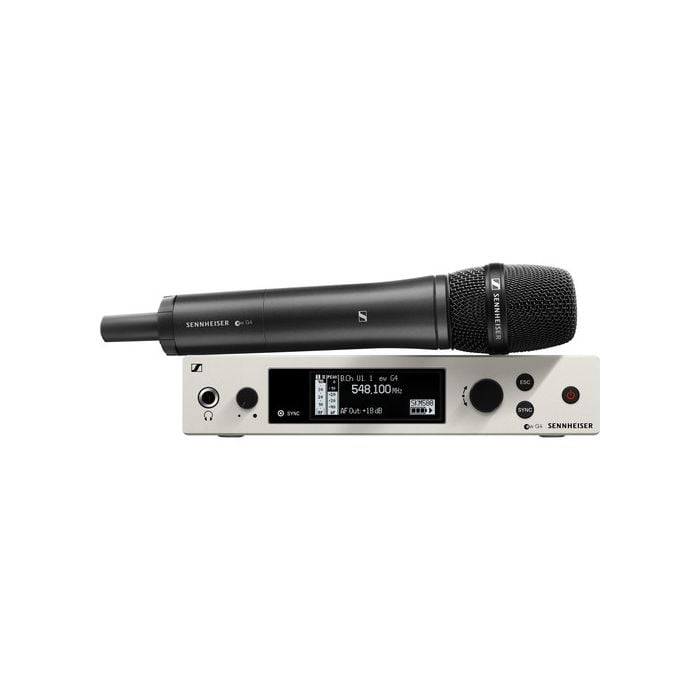

Sennheiser EW 500 G4-945 Wireless Handheld Microphone System with MMD 945 Capsule

SKU
EW 500 G4-945-B
  • For Presenters and Performers
  • MMD 945 Dynamic Supercardioid Capsule
  • Handheld Transmitter
  • True-Diversity Rackmount Receiver
  • 3520 Auto-Scan Frequencies
  • Selectable 10/30/50mW RF... Read More
AED 3,780.00 AED 3,600.00
Pre-Order to secure your piece
Orders shipped within 3 business days.

Secure Checkout with...

Renowned sound engineers rely on ew 500 G4's flexibility, especially when handling multi-channel settings on the world's music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.

  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control

  • Easy and flexible wireless synchronization between transmitter and receiver via infrared

  • Up to 32 compatible channels

  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range

  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups

  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

get real warranty on Sennheiser EW 500 G4-945 Wireless Handheld Microphone System with MMD 945 Capsule at Digi Tech Trading LLC
It's always easy to shop for wireless microphones at Digi Tech Trading LLC because you can browse by best sellers, brand, price range, customer rating, or special offers. And you can take advantage of free shipping within UAE. Digi Tech Trading LLC Sennheiser EW 500 G4-945 Wireless Handheld Microphone System with MMD 945 Capsule - your trusted source of filmmaking equipments
Write Your Own Review
You're reviewing:Sennheiser EW 500 G4-945 Wireless Handheld Microphone System with MMD 945 Capsule
Your Rating

Sennheiser EW 500 G4-945 Specs

System
Wireless Technology Analog UHF
Number of RF Channel Frequencies 3520
Included Transmitters 1 x Handheld
Diversity True Diversity
RF Bandwidth 88 MHz
Frequency Step Size 25 kHz
Max Operating Range 330' / 100.6 m (Line of Sight)
Max Transmitters per Band 32
Deviation ±48 kHz (Peak)
Modulation Wideband FM
Receiver
Receiver Type Tabletop
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x Rod, Detachable (Rear-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4" TRS Female Unbalanced Output
Gain Range 48 dB (3 dB Steps)
Audio Output Level XLR Output:
+18 dBu (Balanced)
1/4" Output:
+12 dBu (Unbalanced)
Network I/O 1 x RJ45
Squelch Adjustable, 5 to 25 dBμV
Adjacent Channel Isolation >75 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 VDC at 300 mA (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 0.2 A
Display & Indicators 1 x OLED (AF Level, Channel, Frequency, Mute, RF Level, Transmitter Battery Status)
Housing Metal
Operating Temperature 14 to 131°F / -10 to 55°C
Dimensions 8.3 x 1.7 x 8" / 212 x 43 x 202 mm
Weight 2.2 lb / 980 g
Transmitter
Transmitter Type Handheld
RF Output Power 10 / 30 / 50 mW
Audio I/O None
Gain Range 48 dB (6 dB Steps)
Frequency Response 80 Hz to 18 kHz (Mic)
Sync Method IR
Antenna 1 x Internal, Fixed (Handheld)
Power Requirements Battery
Battery Type 2 x AA (Included)
1 x Sennheiser Battery Pack (Not Included, Replaceable)
Approx. Battery Life 8 Hours (Alkaline)
Display & Indicators 1 x Backlit LCD (Audio Level, Battery Status, Channel, Group, Mute, Signal Strength)
Housing Metal
Operating Temperature 14 to 131°F / -10 to 55°C
Dimensions 2 x 10.4" / 50 x 265 mm
Weight 15.9 oz / 450 g (with Batteries)
Microphone
Microphone Type Handheld Capsule
Color Black
Sound Field Mono
Capsule Dynamic
Polar Pattern Supercardioid
Maximum SPL 154 dB SPL
Sensitivity 1.8 mV/Pa at 1 Hz
Packaging Info
Package Weight 6.725 lb
Box Dimensions (LxWxH) 16.1 x 12.7 x 3.3"
  • Sennheiser EW 500 G4-945 Wireless Handheld Microphone System with MMD 945 Capsule
  • Sennheiser EM 300-500 G4 Wireless Receiver
  • Sennheiser SKM 500 G4 Wireless Handheld Transmitter with No Mic Capsule
  • Sennheiser MMD 945B Supercardioid Dynamic Capsule for Handheld Transmitters (Black)
  • Sennheiser MZQ 1 Clip for SKM Wireless Handheld Microphones
  • 2 x Rod Antennas
  • Sennheiser NT 12-5-CW Universal Power Supply for XSW and EW G4 100 Series Receivers
  • 2 x AA Batteries
  • Rackmount Kit
  • Limited 2-Year Manufacturer Warranty
