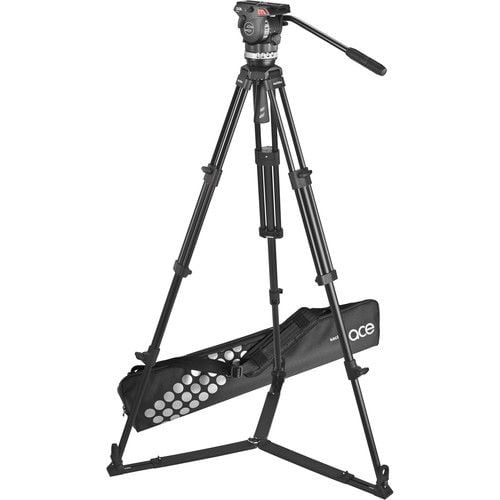

Name: Sachtler Ace Fluid Head with 2-Stage Aluminum Tripod & On-Ground Spreader
Brand: Sachtler
SKU: 1002
Price: 3045.00 AED
Availability: OutOfStock

Description

The Sachtler Ace Fluid Head with 2-Stage Aluminum Tripod & On-Ground Spreader is a full tripod system for videographers who use HDSLR cameras and smaller camcorders. Whether you're doing documentaries, ENG, weddings, corporate videos, or any other type of projects with a smaller camera, the Ace system matches your needs, enabling broadcast-style performance with lightweight components. With its light weight, compact size, and floor spreader, this system is perfect for projects that involve multiple setup changes on level surfaces.

With a payload up to 8.8 lb, the Ace fluid head features five steps of counterbalance as well as a plate that features a 4.1" range of adjustment, so you can balance your small camera to a very precise degree. Designed by Sachtler engineers for the Ace head, the SA drag system enables smooth, precise panning and tilting via the head's pan bar, with three grades of drag in both the horizontal and vertical dimensions, plus the option of zero drag. The head's tilt range is +90° to -75°.

The tripod mounts the head via its 75mm bowl. With the Ace head attached, the two-stage aluminum model reaches a maximum height of 68.1" for a comfortable working height for almost all users. Also included is an on-ground spreader, model SP 75, which adds to the stability of the system when you're operating on a level surface. The spreader features telescopic arms to accommodate different tripod heights.

SA Drag for Perfect Performance

For the Ace head, Sachtler engineers developed a patented drag, SA (synchronized actuated) drag, which guarantees accuracy and repeatability at a remarkable price. With three vertical and three horizontal grades of drag, SA drag enables fine adjustments for precise panning and tilting. Damping can also be completely deactivated

Lightweight Material

Weighing just 3.7 lb on its own, the Ace head is composed of a glass fiber-reinforced composite material, which keeps the head especially light and offers a comfortable, non-slip surface feel. The head enables camera operators to work extremely intuitively and professionally – and with the system's light weight and compact size, operators will want to take Ace on the go

Familiar Sachtler Features

The Ace head reflects Sachtler's 50 years of developing camera support products, which is evident in such practical features as the Ace camera plate's parking position for spare camera screws and the long 4.1" sliding range. The plate comes with a 1/4"-20 screw and a video pin

Broadcast Feel for Smaller Cameras

With its payload range of 0-8.8 lb, Ace is ideal for smaller HD & HDV camcorders as well as HDSLR cameras. The five-step counterbalance makes it easy to achieve proper balance quickly

get real warranty on Sachtler Ace Fluid Head with 2-Stage Aluminum Tripod & On-Ground Spreader at Digi Tech Trading LLC
It's always easy to shop for Video Tripods at Digi Tech Trading LLC because you can browse by best sellers, brand, price range, customer rating, or special offers. And you can take advantage of free shipping within UAE. Digi Tech Trading LLC Sachtler Ace Fluid Head with 2-Stage Aluminum Tripod & On-Ground Spreader - your trusted source of filmmaking equipments

Reviews

Write Your Own Review

You're reviewing: Sachtler Ace Fluid Head with 2-Stage Aluminum Tripod & On-Ground Spreader

Your Rating:

Loading...

You submitted your review for moderation.

Technical Specification

Sachtler 1002 Specs

General
Load Capacity	8.8 lb (4 kg)
Maximum Height	68.1" (173 cm)
Maximum Height w/o Column Extended	N/A
Minimum Height	22.4" (57 cm)
Folded Length	34.3" (87 cm)
Leveling Bubble/Illuminated	Yes/no
Weight	10.1 lb (4.6 kg)
Head
Counter Balance System	5-step
Quick Release/Wedge Plate	Yes
Balance Plate	4.1" (10.4 cm) range of adjustment
Tilt Drag	3 grades each in horizontal and vertical, plus zero
Tilt Range	+90° / -75°
Tilt Lock	Not specified by manufacturer
Spring Loaded Counter Balance	In 5 steps
Pan Range	Not specified by manufacturer
Pan Lock	Not specified by manufacturer
Legs
Material	Aluminum
Head Attachment Fitting	75mm bowl
Leg Stages/Sections	2/3
Leg Lock Type	Thumb screws
Independent Leg Spread	Yes, without spreader attached
Spiked/Retractable Feet	Yes/yes
Center Brace	No
Operating Temperature	-22 to 140°F (-30 to 60°C)

Packaging Info

Package Weight	13 lb
Box Dimensions (LxWxH)	36.2 x 7.5 x 6.5"

In the Box

Sachtler Ace Fluid Head with 2-Stage Aluminum Tripod & On-Ground Spreader

Sachtler SP 75 Ground Spreader for 75mm Tripods & Pedestal C I

Ace Camera Mounting Plate

Ace Bag

Limited 1-Year Warranty, Extendable to 2-Years with Product Registration
