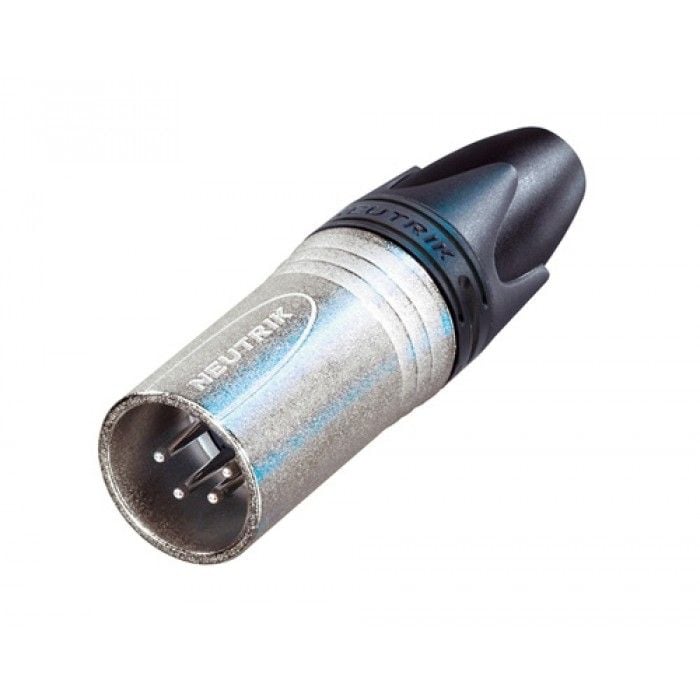

NEUTRIK 4 Pole Male Cable Connector With Nickel Housing And Silver Contacts

SKU
NC4MXX
  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with... Read More
AED 26.25 AED 25.00
Out of stock
Orders shipped within 3 business days.

Secure Checkout with...

4 pole male cable connector with Nickel housing and silver contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

get real warranty on NEUTRIK 4 Pole Male Cable Connector With Nickel Housing And Silver Contacts at Digi Tech Trading LLC
It's always easy to shop for Cables & Adapters at Digi Tech Trading LLC because you can browse by best sellers, brand, price range, customer rating, or special offers. And you can take advantage of free shipping within UAE. Digi Tech Trading LLC NEUTRIK 4 Pole Male Cable Connector With Nickel Housing And Silver Contacts - your trusted source of filmmaking equipments
Write Your Own Review
You're reviewing:NEUTRIK 4 Pole Male Cable Connector With Nickel Housing And Silver Contacts
Your Rating

Technical Information

Product
Title NC4MXX
Connection Type XLR
Gender male
Electrical
Capacitance between contacts ≤ 7 pF
Contact resistance ≤ 3 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 10 A
Rated voltage < 50 V
Mechanical
Cable O.D. 3.5 - 8.0 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize max. 1.5 mm²
Wiresize max. 16 AWG
Wiring Solder contacts
Locking device Latch lock
Material
Boot Polyurethan
Contact plating 2 µm Ag over 2 µm Ni
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Locking element Zinc diecast (ZnAl4Cu1)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 HB
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
  • NEUTRIK 4 Pole Male Cable Connector With Nickel Housing And Silver Contacts
  • Limited 180-Day Warranty
