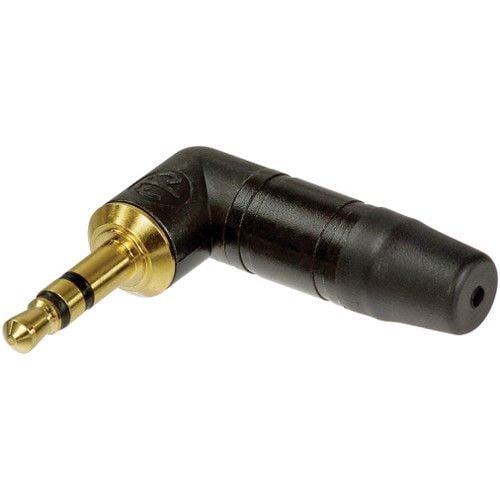

The black and gold Neutrik 3.5 mm Right-Angle Stereo Plug is a metal-bodied 3.5 mm jack plug with chuck-type strain relief for secure cable retention. It accepts cables from 2.0 to 4.5 mm.
We use cookies to make your experience better.
Read more
AED 21.00
AED 20.00
- All metal housing - robust and reliable
- Chuck type cable clamp and rubber gland - excellent... Read More
Neutrik NTP3RC-B Overview
It's always easy to shop for Cables & Adapters at Digi Tech Trading LLC because you can browse by best sellers, brand, price range, customer rating, or special offers. And you can take advantage of free shipping within UAE. Digi Tech Trading LLC Neutrik 3.5 mm Right-Angle Stereo Plug (Black/Gold) - your trusted source of filmmaking equipments
| Manufacturer | Nutrik |
|---|
Write Your Own Review
Neutrik NTP3RC-B Specs
| Connector | Male 3.5 mm plug |
| Contact Resistance | Depends on mating connector mΩ (inner) |
| Dielectric Strength | 1 kVdc |
| Insulation Resistance | > 2 GΩ (initial) |
| Rated Current Per Contact | ≤ 15A |
| Cable O.D. | 2 to 4.5 mm |
| Wire Gauge and Type | 24 AWG (0.22 mm2) |
| Wiring | Solder contacts |
| Bushing | Brass (CuZn39Pb3) + PU, black Cr |
| Contact Plating | 0.2 µm Au |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 15 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell Plating | Black chromium |
| Strain Relief | Polyacetal (POM) |
| Solderability | Complies with IEC 68-2-20 |
| Temperature Range | -4°F to 149°F (-20°C to 65°C) |
Packaging Info
| Package Weight | 0.02 lb |
| Box Dimensions (LxWxH) | 3.45 x 0.95 x 0.6" |
- Neutrik 3.5 mm Right-Angle Stereo Plug (Black/Gold)
- Limited 1-Year Warranty
