DJI LiDAR Range Finder for RS

SKU
CP.RN.00000288.01
Be the first to review this product
  • Designed for DJI RS 3 Gimbal
  • Mounts on Camera, Powers from Camera
  • 43,200 Ranging Points
  • Built-In Camera with 70° Field of View
  • 46' Detection Range, 30mm Focal Length
  • Wide Mode and Spot... Read More
AED 1,929.90 AED 1,838.00
Pre-Order to secure your piece

Share it:

Notify me when this product is in stock
Orders shipped within 3 business days.

Secure Checkout with...

DJI CP.RN.00000288.01 Overview

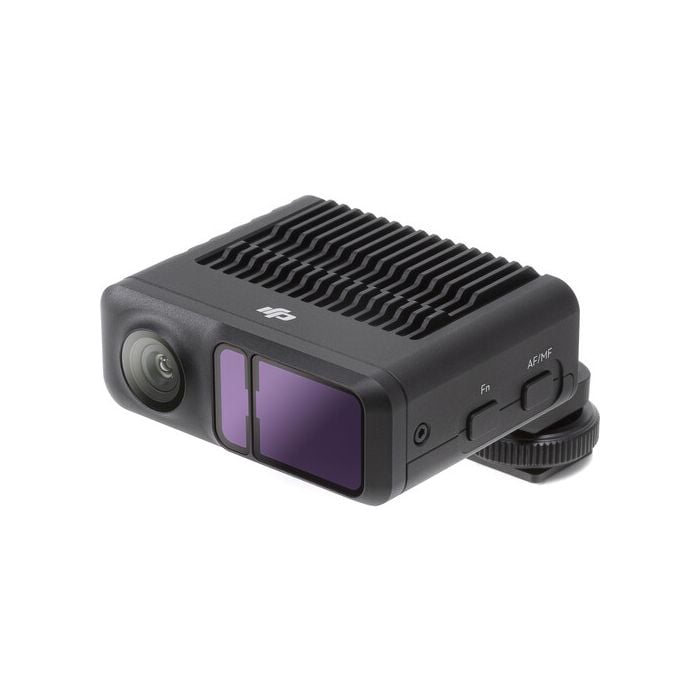

Add extremely precise autofocus when your camera is mounted onto your DJI RS 3 gimbal, even with fast-moving subjects, with this updated DJI LiDAR Range Finder. The range finder is designed to make it easier to focus while in motion, and it has 43,200 ranging points within a 46' detection area for accurate focusing in dim conditions.

The range finder features a built-in camera with 30mm focal length and 70° field of view to ensure accurate focus. It also features wide and spot modes so operators can either autodetect focus or adjust focus manually. It is compatible with the RS Focus Motor to provide accurate cinema-style autofocus when you're using manual lenses. The range finder mounts on your RS stabilizer or camera using its cold shoe or 1/4"-20 thread, and it powers via a USB Type-C power cable, making for a well-integrated autofocus addition to your camera.

Autofocus

The new LiDAR Range Finder (RS) can project 43,200 ranging points within a 14-meter area. It also features a built-in camera with an equivalent focal length of 30mm and a wide FOV of 70°, catering to the focusing needs of most scenarios.

Automated Manual Focus

Compared with conventional focusing technology, the LiDAR focusing system does not need to rely on the surface texture of the subject. This is especially useful in low-light environments or complicated scenarios with multiple subjects and results in exceptionally stable focus in the footage.

Wide and Spot Modes

It supports both Wide Mode and Spot Mode. In Wide Mode, the range finder automatically detects the subject and follows focus. In Spot Mode, users can manually frame or tap the subject to focus.

Pairs with Focus Motor

The pairing of the LiDAR Range Finder with the new Focus Motor also makes cinematic autofocus on manual lenses possible after calibration. Press the M button on the gimbal once to quickly switch between manual focus and autofocus to meet your needs for both modes effortlessly.

Lenses that Work without Calibration

DZOFILM Vespid Cyber 35mm
DZOFILM Vespid Cyber 50mm
DZOFILM Vespid Cyber 75mm
get real warranty on DJI LiDAR Range Finder for RS at Digi Tech Trading LLC
It's always easy to shop for Stabilizers & Gimbals at Digi Tech Trading LLC because you can browse by best sellers, brand, price range, customer rating, or special offers. And you can take advantage of free shipping within UAE. Digi Tech Trading LLC DJI LiDAR Range Finder for RS - your trusted source of filmmaking equipments
Write Your Own Review
You're reviewing:DJI LiDAR Range Finder for RS
Your Rating

DJI CP.RN.00000288.01 Specs

General
Compatibility DJI RS 3 Gimbal
Resolution 448 x 298 (on RS Touchscreen)
Field of View Horizontal: 57.4°
Vertical: 44.6°
Diagonal: 70.1°
Frame Rate 30 fps
Focal Length 30mm
Frequency ToF Sensor: 25 Hz
Machine Learning: 30 Hz
Inputs / Outputs
USB I/O 2 x USB Type-C Female Input
Power
Power Source USB
DC Input Power 7 to 16 VDC
Power Consumption 6.8 W
Environmental
Operating Temperature 28 to 145°F / -4 to 113°C
Physical
Mounting 1 x Cold Shoe
1 x 1/4"-20 Thread
Dimensions 2.6 x 2.2 x 0.9" / 66 x 57 x 24 mm
1.2" / 30 mm (Mounting Plate Height)
Weight 4.6 oz / 130 g
Packaging Info
Package Weight 0.75 lb
Box Dimensions (LxWxH) 19 x 13 x 8.8"
  • DJI LiDAR Range Finder for RS
  • Limited 2-Year Warranty
