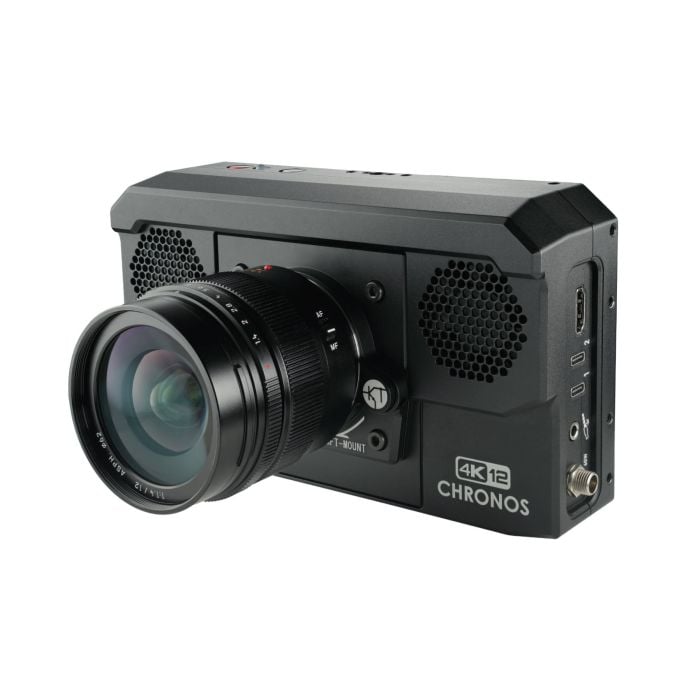

Chronos 4K12 128 GB with Colour Sensor and EF Lens Mount

SKU
CN4K12-1.0-128C-EF
AED 68,485.00 AED 65,223.81
Pre-Order to secure your piece
Orders shipped within 3 business days.

Secure Checkout with...

Chronos 4K12 128 GB with Colour Sensor and F Lens Mount

Experience the extraordinary capabilities of the Chronos 4K12 high-speed camera, which captures mesmerizing 4K slow-motion video at over 1,000 frames per second.

Designed for peak performance and exceptional value, the Chronos 4K12 is purpose-built to captivate audiences, supercharge data analysis, and foster innovation. Its user-friendly design and portability make it an ideal choice for a wide range of high-speed imaging requirements.

get real warranty on Chronos 4K12 128 GB with Colour Sensor and EF Lens Mount at Digi Tech Trading LLC
It's always easy to shop for Digital Cameras at Digi Tech Trading LLC because you can browse by best sellers, brand, price range, customer rating, or special offers. And you can take advantage of free shipping within UAE. Digi Tech Trading LLC Chronos 4K12 128 GB with Colour Sensor and EF Lens Mount - your trusted source of filmmaking equipments
Write Your Own Review
You're reviewing:Chronos 4K12 128 GB with Colour Sensor and EF Lens Mount
Your Rating

Chronos 4K12 128 GB with Colour Sensor and F Lens Mount

CAMERA
Imaging 4096 x 2160 @ 1,397 FPS
Memory 128GB
Record Time (in seconds) 11 (128GB) at max resolution
Lens Mount C, E, F, EF, MFT Plates Available
Backfocus Field adjustable via included shim kit
IR Filter 650nm, user removable
Display 5” 800x480 capacitive touchscreen, 1000 nit daylight visible
Enclosure Anodized CNC machined aluminum
Cooling Active cooling, variable-speed fans
Dimensions 188mm x 111mm x 53mm (7.40” x 4.37” x 2.08”) w/o lens
Weight 1.32 kg (2.91 lbs) without lens
VIDEO FORMATS
Compressed Standardized H.264 AVC, or H.265 HEVC MPEG-4 Video Files
Raw Standard Adobe CinemaDNG raw files
Storage Devices Internal 1 TB NVMe SSD, SD Card, USB-C SSD, or SMB/NFS network drives
IMAGE SENSOR
Resolution 4096 x 2160 @ 1,397 FPS Maximum 128x32 @ 29,002 FPS Minimum
Speed 11.8 Gigapixels per second
Dimensions 20.74mm x 9.79mm (4/3” format, 10-Megapixel, 2x Crop Factor)
Pixel Pitch 4.5um
Sensitivity (ISO) Color - ISO 100
Shutter Electronic global shutter, 1/fps to 1us (1/1,000,000 s)
Dynamic Range 11.3 stops (68 dB) in 12-bit mode
Bit Depth 8-bit, 10-bit, or 12-bit User Selectable
Inputs/outputs
Power Input 12-24V 60W (5.5/2.5mm barrel jack, positive tip)
Network Gigabit Ethernet via USB-C Adapter WiFi via USB-C Adapter
Trigger 3 trigger inputs/ frame strobe outputs (4-pin 3.5mm TRRS Connector) Adjustable input threshold 0 to 6.6V. Optional TRRS to BNC splitter cable accessory.
Video HDMI output 4K @ 30 FPS or HD @ 60 FPS
USB Dual USB Type C Ports USB-C Port 1: 3.2 Gen 1, 5 Gbps (PC or Peripheral) USB-C Port 2: 3.2 Gen 2x2, 20 Gbps (Peripheral, SSDs)
TRIGGER MODES
End Trigger Records until a defined delay after trigger
Toggle Starts and stops with button press
Exposure Trigger External signal sets synchronization frame rate
Shutter Gating External signal sets the exposure synchronization and frame-rate
Frame Sync Output Outputs a signal indicating its frame rate and exposure
SOFTWARE
Control Desktop, iOS, and Android Apps coming soon. Connect via optional Ethernet or WiFi adapters.
Stream Live or Playback Mode network streaming via RTSP stream.
APIs HTTP REST Interface, Open-source codebase
NETWORK CONTROL
Network Control Through control apps or REST API via optional Ethernet or WiFi adapters.
RECORDING MODES
Normal Records into the ring buffer. Once a trigger occurs, video can be reviewed and saved.
Segmented Video memory is divided into segments, each recording as in the Normal mode above. Number of segments is user selectable.
Gated Burst Frames are captured while trigger is active
Normal Speed Recording
Continuous Video is saved continuously at up to 60FPS to MP4 files on removable storage. Operates like a standard video camera.
Assistive
Focus Aid Highlights sharp edges to aid focusing
Zebras Rolling diagonal lines indicate clipped (overexposed) areas
Histogram Graphically represent brightness and distribution of light in the image
Viewfinder Zoom Zooms in to allow easier focusing
Overlay Displays frame and time information on top of footage
Environmental
Operating Temperature 0 °C to +40 °C (32 °F to +104 °F)
  • Chronos 4K12 Camera Body
  • Mount Plate
  • Lens Mount Shim Kit
  • 3.0mm Allen Key
  • Trigger Switch Cable
  • 3.5mm to Dual-BNC Adapter Block
  • SD Card
  • D-Tap to Barrel Jack Cable
  • 3.5mm to 4-pin Terminal Block
  • 90W DC Power Supply
  • Region-Specific Power Cord
  • Quickstart Guide
  • Certificate of Quality
  • Nanuk 920 Carrying Case
