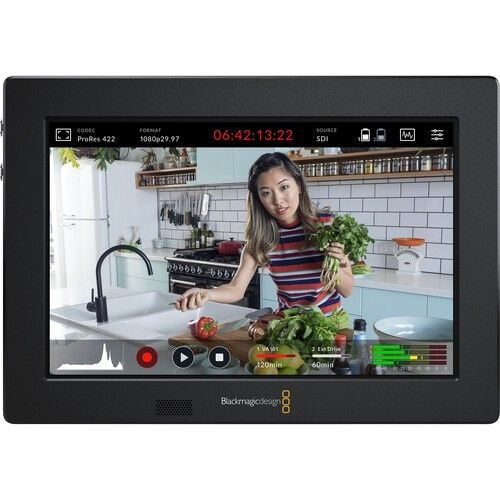

Blackmagic Design Video Assist 3G 7" Recorder/Monitor

SKU
HYPERD/AVIDA03/7
  • 1920 x 1080 7" Touchscreen LCD
  • HDMI & 3G-SDI Video Inputs
  • Records up to 1080p60 Video
  • Stores to 2 x SDHC/SDXC Memory... Read More
AED 3,203.55 AED 3,051.00
pre-order to book your unit
Orders shipped within 3 business days.

Secure Checkout with...

Blackmagic Design Video Assist Overview

Add professional monitoring and high-quality recording to your camera with the Video Assist 3G-SDI/HDMI 7" Recording Monitor from Blackmagic Design. It features a bright 7", 1920 x 1200 display with 300 cd/m² brightness to help you frame and focus your shots, and it provides 3G-SDI and HDMI inputs for recording the video output from professional and consumer cameras. You can monitor and record video resolutions up to 1080p60 10-bit 4:2:2 and up to 16 channels of embedded 24-bit 48 kHz audio. This monitor also features two balanced 3-pin mini-XLR inputs with 48V phantom power support for crisp audio recording.

The Video Assist 3G 7" records to SDXC/SDHC memory cards via dual UHS-I SD card slots. Use the USB Type-C port to record for configuring and upgrading the monitor. Video is recorded using industry-standard Apple ProRes (HQ, 422, LT, or Proxy) and Avid DNxHD codecs.

This monitor's touchscreen interface enables you to adjust settings and access monitoring features such as histogram, waveform, RGB parade, vectorscope, and many more scopes and exposure tools. There is also a tally light on top of the monitor to indicate it is operating and recording. Choose from 11 languages for easier use of on-screen text displays and menu options. Power the monitor using the included 12V power adapter or using separately available Sony L-Series type batteries on the dual battery slots.

Features

Supports video formats up to 1080p60
Can be used to upgrade viewing and recording options with older cameras
7" touchscreen LCD sreen with customizable overlays
3G-SDI and HDMI input ports with loop-through outputs
3D LUT support for customized viewing
Direct metadata entry
Dual SD card slots for ProRes recording
Multiple display tools including focus peaking, zebra, and false color
Waveform, vectorscope, histogram, and RGB parade

Supported Languages

English
Chinese
French
German
Italian
Japanese
Korean
Portuguese
Russian
Spanish
Turkish
get real warranty on Blackmagic Design Video Assist 3G 7" Recorder/Monitor at Digi Tech Trading LLC
It's always easy to shop for Monitors & Recorders at Digi Tech Trading LLC because you can browse by best sellers, brand, price range, customer rating, or special offers. And you can take advantage of free shipping within UAE. Digi Tech Trading LLC Blackmagic Design Video Assist 3G 7" Recorder/Monitor - your trusted source of filmmaking equipments
Write Your Own Review
You're reviewing:Blackmagic Design Video Assist 3G 7" Recorder/Monitor
Your Rating

Blackmagic Design Video Assist Specs

Display
Panel Type LCD
Display Size 7.0" / 17.8 cm
Screen Resolution 1920 x 1200
Aspect Ratio 16:9
Viewing Angle Horizontal: 135°
Touchscreen Yes
Maximum Brightness 310 cd/m2
Pixels Per Inch (ppi) 323 ppi
Color Gamut 100% Rec. 709
Real-Time LUT Monitoring SDR
Image Controls Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
I/O
Video 1 x HDMI Type A Input
1 x BNC (3G-SDI/HD-SDI/SD-SDI) Input
1 x HDMI Type A Output
1 x BNC (3G-SDI/HD-SDI/SD-SDI) Output
HDCP Support Yes
Embedded Audio HDMI: 8-Channel
SDI: 16-Channel
Audio 2 x Mini-XLR Input
1 x 3.5 mm Headphone Output
Built-In Speaker 1
Power 1 x Barrel (12 VDC) Input
Other I/O 1 x USB Type-C
1 x LANC (2.5 mm) Input
Card Slot 2 x SD
Wi-Fi None
Format Support
Video Format SDI (10-Bit 4:2:2 YUV)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94
HDMI (10-Bit)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94
Recording
Pulldown Conversion None
Camera Trigger None
Pre-Roll Record None
Encoding Formats Up to 1920 x 1080
ProRes 422 HQ, 422, LT, Proxy 10-Bit 4:2:2 at up to 60 fps
DNxHD 220x, 145, 45, 220x MXF, 145 MXF, 45 MXF 10-Bit 4:2:2 at up to 60 fps
Maximum Audio Tracks 16
Recording Media 1 x SDXC (UHS-I)
Metadata Tagging Yes
Timecode Support SMPTE 12M via Embedded SDI / Embedded HDMI
Phantom Power None
Power
DC Input Power 12 VDC
Battery Type 2 x L-Series
Mounting
Mounting 6 x 1/4"-20 Female
Environmental
Operating Humidity 0 to 90%
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
General
Material of Construction Aluminum
Dimensions (W x H x D) 7.6 x 5.14 x 1.45" / 19.3 x 13.06 x 3.68 cm
Weight 1.82 lb / 825 g
Warranty Length Limited 1-Year Warranty
Packaging Info
Package Weight 3 lb
Box Dimensions (LxWxH) 9.7 x 9.5 x 3.3"
  • Blackmagic Design Video Assist 3G-SDI/HDMI 7" Recorder/Monitor
  • Blackmagic Design Power Supply for Video Assist
  • Limited 1-Year Warranty
