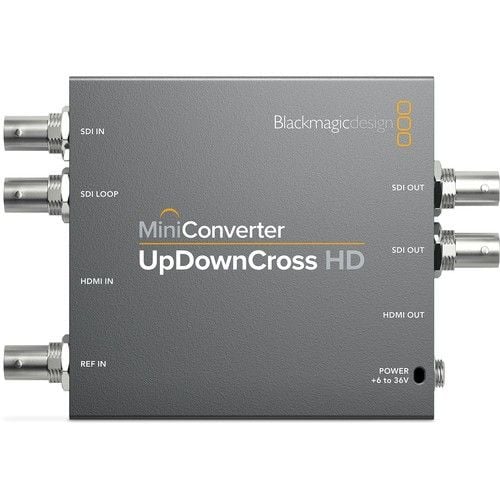

Blackmagic Design Mini Converter UpDownCross HD

In stock
SKU
CONVMUDCSTD/HD
Blackmagic Design
AED622.00
  • 3G/HD/SD-SDI Up/Down/Cross Conversion
  • 1 x 3G/HD/SD-SDI Input
  • 2 x 3G/HD/SD-SDI Outputs & 1 x Loopout
  • 1 x HDMI Input & 1 x HDMI Output

Blackmagic Design CONVMUDCSTD Overview

Use the Mini Converter UpDownCross HD from Blackmagic Design to automatically cross-convert between any SD and HD video format, with support for signals up to 1080p60. The converter incorporates one 3G/HD/SD-SDI input, two 3G/HD/SD-SDI outputs and one loop-through output, one HDMI input, and one HDMI output. This versatile converter supports scaling for computer DVI resolutions via its HDMI input, enabling you to connect HDMI computers to SDI projectors.

Features include automatic signal detection, reference in, reclocking, and audio delay for A/V sync. Settings can be easily changed using the diagrammed function switches, or via the OS X/Windows-compatible converter software. This compact converter features a sturdy metal housing, and includes a 12V universal power supply with a locking connection to prevent accidental disconnection.

Key Features

  • Full up, down, and cross conversion between HD and SD video formats up to 1080p60
  • Single 3G/HD/SD-SDI input
  • Two 3G/HD/SD-SDI outputs, one loop-through output
  • One HDMI input, one HDMI output
  • Automatic signal detection
  • Scales computer DVI resolutions
  • Automatic SD/HD switching
  • Universal power supply included with multiple socket adapters
  • Control via built-in mini switches or Mac/Windows-compatible software
get real warranty on Blackmagic Design Mini Converter UpDownCross HD at Digi Tech Trading LLC
It's always easy to shop for Converters at Digi Tech Trading LLC because you can browse by best sellers, brand, price range, customer rating, or special offers. And you can take advantage of free shipping within UAE. Digi Tech Trading LLC Blackmagic Design Mini Converter UpDownCross HD - your trusted source of filmmaking equipments
More Information
Manufacturer Blackmagic Design

Blackmagic Design CONVMUDCSTD Specs

Connections
Video Input3G/HD/SD-SDI: 1 x BNC
HDMI: 1 x Type A
Video Output3G/HD/SD-SDI: 2 x BNC
Loop-Through Out: 1 x BNC
HDMI: 1 x type A
Reference InputBlack Burst & Tri-Level Sync: 1 x BNC
ReclockingYes
SDI ComplianceSMPTE 424M-B/296M/292M/259M
ITU-R BT.656/BT.601
SDI Video Sampling4:2:2
SDI Color SpaceYUV
SDI Audio Sampling48 kHz, 24-bit
Supported Video StandardsSDI:
1080p 60/59.94/50/30/29.97/25/24/23.98
1080PsF 24/23.98
1080i 60/59.94/50
720p 60/59.94/50

HDMI:
1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50

NTSC SD: 525i 59.94
PAL SD: 625i 50
Computer Formats
ScalingDVI Resolutions:
1080p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50
625i 50
525i 59.94
1024 x 768
800 x 600
640 x 480
Power
Power Supply12 VDC
Operation Voltage6 to 36 VDC
Power Consumption5 W
Physical & Environmental
Operating Temperature32 to 104°F / 0 to 40°C
Storage Temperature-4 to 113°F / -20 to 45°C
Relative Humidity0 to 90%, non-condensing
Dimensions5.32 x 3.63 x 0.9" / 13.5 x 9.2 x 2.3 cm
Weight8.7 oz / 247 g
Packaging Info
Package Weight1.1 lb
Box Dimensions (LxWxH)5.8 x 5.55 x 2.6"
  • Blackmagic Design Mini Converter UpDownCross HD
  • 12 VDC Universal Power Supply with International Adapters
  • Limited 3-Year Warranty
