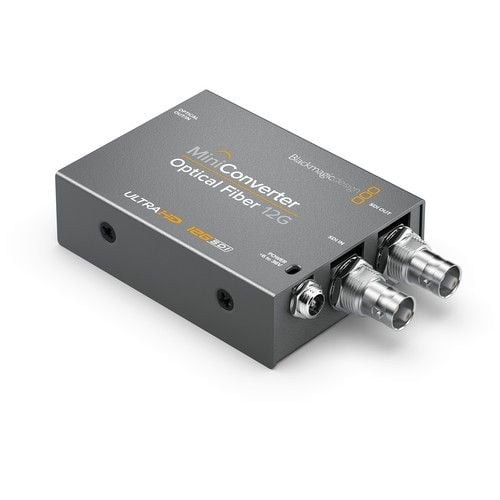

Blackmagic Design Mini Converter Optical Fiber 12G-SDI

Out of stock
SKU
CONVMOF12G
AED653.10 AED622.00
Pre-Order to secure your piece
  • Converts 12G/6G/3G-SDI to Optical Fiber
  • Supports Signals up to DCI 4K25
  • Multi-Rate, Bidirectional Capability
  • Requires Separate SFP Optical Module

Blackmagic Design CONVMOF Overview

The Mini Converter Optical Fiber 12G-SDI from Blackmagic Design offers bidirectional, multi-rate SDI to optical fiber conversion capabilities with complete independence in each direction and support for up to DCI 4K25 and UHD 4K60 signals. This converter has one SFP optical fiber socket (requires a separate module), one 12G/HD/SD-SDI input, and one 12G/HD/SD-SDI output. With a 10-bit rate, you can take advantage of long fiber runs and compatibility with both studio and field HD-SDI and SD equipment.

Features include automatic signal detection and support for up to 16-channel embedded audio. Settings can be easily changed using the diagrammed function switches, or via the macOS/Windows-compatible converter software. This compact converter features a sturdy metal housing and includes a 12V universal power supply with a locking connection for added security.

Features

  • Bidirectional, multi-rate SDI to optical fiber conversion
  • Supports video signals up to DCI 4K25 and UHD 4K60
  • Automatic signal detection
  • Supports up to 16-channel embedded audio
  • Change settings with function switches or the macOS/Windows-compatible software
  • Universal power supply with locking connector
  • Rugged, compact metal housing
  • One SMPTE optical fiber SFP socket (requires separate module)
  • 12G/6G/3G-SDI input and output
get real warranty on Blackmagic Design Mini Converter Optical Fiber 12G-SDI at Digi Tech Trading LLC
It's always easy to shop for Converters at Digi Tech Trading LLC because you can browse by best sellers, brand, price range, customer rating, or special offers. And you can take advantage of free shipping within UAE. Digi Tech Trading LLC Blackmagic Design Mini Converter Optical Fiber 12G-SDI - your trusted source of filmmaking equipments
More Information
Manufacturer Blackmagic Design

Blackmagic Design CONVMOF Specs

Input
Video Input Connectors1 x BNC (12G-SDI)
Input Video FormatSDI (4:4:4/4:2:2 RGB, YUV)
DCI 4K: 23.98/24/25 fps
UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2K: 23.98/24/25 fps
DCI 2KPsF: 23.98/24/25 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
Embedded Audio InputSDI: 16-Channel
Output
Video Output Connectors1 x BNC (12G-SDI / 3G-SDI / 6G-SDI)
Output Video FormatSDI (10-Bit 4:4:4/4:2:2 RGB, YUV)
DCI 4K: 23.98/24/25 fps
UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2K: 23.98/24/25 fps
DCI 2KPsF: 23.98/24/25 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
1080i: 50/59.94/60 fps
Embedded Audio OutputSDI: 16-Channel
Standards
Video Standard ComplianceSMPTE 259M/292M/296M/297M/424M-B/425M/ST-2081
ITU -R BT.601
HDCP SupportNone
Connectivity
Expansion Slots1 x SFP Slot
Power
Power Connector1 x Barrel (6 to 36 VDC) Input
Power ConsumptionPower Supply: 2 W
Environmental
Operating Temperature32 to 104°F / 0 to 40°C
Storage Temperature-4 to 113°F / -20 to 45°C
Operating Humidity0 to 90%
General
Dimensions4.33 x 2.32 x 0.9" / 109.98 x 58.93 x 22.86 mm
Weight7.4 oz / 210 g
Packaging Info
Package Weight0.925 lb
Box Dimensions (LxWxH)5.8 x 4.7 x 2.75"
  • Blackmagic Design Mini Converter Optical Fiber 12G-SDI
  • Universal Power Supply
  • Limited 1-Year Warranty
Blackmagic Design Mini Converter Optical Fiber 12G-SDI
