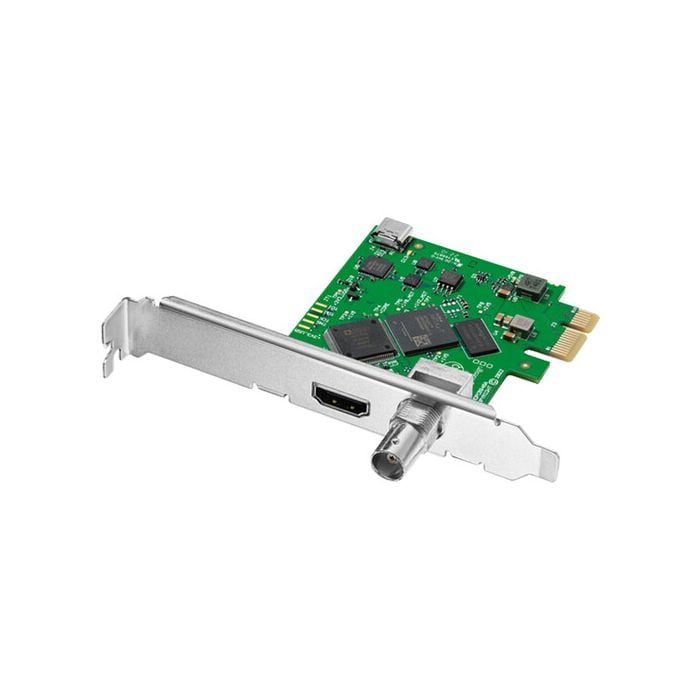

Blackmagic Design DeckLink Mini Monitor HD

Out of stock
SKU
BDLKMINIMON3G
AED 560.70 AED 534.00
Pre-Order to secure your piece
  • Broadcast-Quality Playback & Monitoring
  • 1-Lane PCIe Slot Card (for 1-16 Lanes)
  • SDI and HDMI Outputs
  • Up to 1080p60 Resolution Support in HDMI
  • Supports up to 2K DCI over SDI
  • 8-, 10-, 12-Bit Video, 4:2:2 / 4:4:4
  • REC 601/709 Color Space Support
  • Mac, Windows, and Linux Compatible

Blackmagic Design Mini Monitor HD Overview

Monitor your computer's video output via SDI or HDMI with the Blackmagic Design DeckLink Mini Monitor HD. This 1-lane PCIe slot playback card with SDI and HDMI outputs, compatible with 1-, 4-, 8-, and 16-lane PCIe slots, providing you with just the playback and monitoring functionality for delivering broadcast-quality video via HDMI or SDI monitors.

The card supports up to DCI 2k formats and is compatible with such software packages as DaVinci Resolve and Final Cut Pro. In addition, the card supports hardware-based real-time color space conversion. The card also automatically switches between SD and HD formats, so it'll handle all common video formats as well as HDR.

Note:
For use on a Mac, a Mac Pro is required with PCI Express slots.

PCIe Compatibility

PCIe 1-lane card, compatible with 1-, 4-, 8-, and 16-lane PCIe slots on Mac, Windows, and Linux (for use on a Mac, a Mac Pro is required with PCI Express slots)

Supported Software Applications

  • DaVinci Resolve
  • Fusion
  • Final Cut Pro
  • Adobe Premiere Pro CC, Adobe After Effects CC, Adobe Photoshop CC
  • Avid Media Composer, Avid Pro Tools
  • Steinberg Cubase, Steinberg Nuendo
  • The Foundry Nuke
  • Sony Catalyst Production Suite
  • Tools On Air Just: Play & Live
  • Magix Movie Edit Pro Premium
  • Corel VideoStudio Pro
  • CyberLink Power Director
  • Grass Valley Edius
  • Softron Mreplay
  • Telestream Wirecast
  • Livestream Studio
  • Resolume Arena
  • Vegas Creative Software Vegas Pro
  • VidblasterX Studio and Broadcast
  • Unimedia Technologies UniplayOne and Uniplay-CG
  • CasparCG Server
  • Magicsoft CG
  • Xsplit Broadcaster
  • DevTek Easy Media Suite
  • Boinx Software MimoLive
  • StudioCoast vMix
  • Renewed Vision ProPresenter
  • Ventuz Director
  • Class X Liveboard and CoralCG
  • Open Broadcaster Software Studio
  • Nautilus Studio Nemo3D
  • Burst Video Webclip2Go
  • Derivative TouchDesigner
  • Assimilate Scratch and Live Assist
  • NewBlue Title Live and Titler Pro
  • SGO Mistika

Supported Codecs

  • AVC-Intra
  • AVCHD
  • Canon XF MPEG2
  • Digital SLR
  • DV-NTSC
  • DV-PAL
  • DVCPRO50
  • DVCPROHD
  • DPX
  • HDV
  • HEVC
  • XDCAM EX
  • XDCAM HD
  • XDCAM HD422
  • DNxHR & DNxHD
  • AppleProRes 4444
  • Apple ProRes 422 HQ
  • Apple ProRes 422
  • Apple ProRes 422LT
  • Apple ProRes 422 Proxy
  • Uncompressed 8-bit 4:2:2
  • Uncompressed 10-bit 4:2:2
  • Uncompressed 10-bit 4:4:4

Hardware Frame Buffer

v210 (10-bit YUV), 2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), r210 (10-bit RGB), R12B, R12L (12-bit RGB)
get real warranty on Blackmagic Design DeckLink Mini Monitor HD at Digi Tech Trading LLC
It's always easy to shop for Computer Video Hardware at Digi Tech Trading LLC because you can browse by best sellers, brand, price range, customer rating, or special offers. And you can take advantage of free shipping within UAE. Digi Tech Trading LLC Blackmagic Design DeckLink Mini Monitor HD - your trusted source of filmmaking equipments
More Information
Manufacturer Blackmagic Design

Blackmagic Design Mini Monitor HD Specs

Host ConnectionPCIe (Length Unspecified)
Output
Video Output Connectors1 x BNC (3G-SDI / HD-SDI / SD-SDI) (Monitor)
1 x HDMI (HDMI 2.0) (Monitor)
Output Video FormatSDI (8/10/12-Bit 4:4:4 RGB)
1080p at 23.98/24/25/29.97/30 fps
1080PsF at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines 59.94 fps
SDI (8/10-Bit 4:2:2 YUV)
DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2KPsF at 23.98/24/25/29.97/30 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
HDMI (10/12-Bit 4:4:4 RGB)
1080p at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
HDMI (8-Bit 4:4:4 RGB)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
HDMI (12-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Audio Output ConnectorsNone
Embedded Audio OutputSDI: 16-Channel (per Output)
HDMI: 8-Channel (per Output)
Standards
Video Standard ComplianceSMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1
HDR CompatibilityNot Specified by Manufacturer
Hardware
OS CompatibilitymacOS 11.1
macOS 12.0 or Later
Windows 10
Windows 11
Linux
*As of July, 2022: check with manufacturer for the most up-to-date compatibility
Power ConsumptionDevice: 3 W
Environmental
Operating Temperature41 to 104°F / 5 to 40°C
Storage Temperature-4 to 113°F / -20 to 45°C
Operating Humidity0 to 90% (Non-Condensing)
Storage Humidity0 to 90% (Non-Condensing)
General
Dimensions3.62" / 91.95 mm
Weight1.98 oz / 56 g
  • Blackmagic Design DeckLink Mini Monitor HD
  • Low-Profile Slot Bracket
  • Limited 1-Year Warranty
