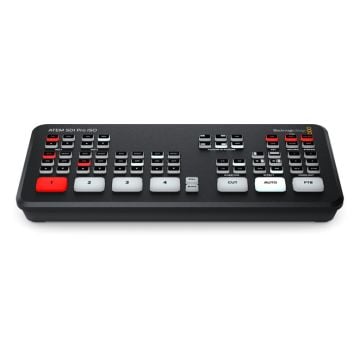

Blackmagic Design ATEM SDI

SKU
SWATEMMXEP
  •  includes 4 standards converted SDI inputs
  • USB webcam
  • 2 SDI outputs
  •  Fairlight audio mixer with EQ and... Read More
AED 1,449.00 AED 1,380.00
In stock
Orders shipped within 3 business days.

Secure Checkout with...

Similar Products

ATEM SDI is fast to set up and easy to use. It includes 4 standards converted SDI inputs, USB webcam, 2 SDI outputs, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control.

get real warranty on Blackmagic Design ATEM SDI at Digi Tech Trading LLC
It's always easy to shop for Production Switchers at Digi Tech Trading LLC because you can browse by best sellers, brand, price range, customer rating, or special offers. And you can take advantage of free shipping within UAE. Digi Tech Trading LLC Blackmagic Design ATEM SDI - your trusted source of filmmaking equipments
Write Your Own Review
You're reviewing:Blackmagic Design ATEM SDI
Your Rating
Connections
Total Video Inputs 4
Total Outputs 3
Total Aux Outputs 2
Total Audio Inputs 2 x 3.5mm stereo mini jack.
Total Audio Outputs None, embedded audio only.
Timecode Connection None
SDI Video Inputs 4 x 3G-SDI, 10-bit HD switchable.
2 channel embedded audio.
Video Input Re-Sync On all 4 SDI inputs.
Frame Rate and Format Converters On all 4 SDI inputs.
SDI Program Outputs 2
Ethernet Ethernet supports 10/100 BaseT for software control, software updates and direct or network panel connection.
Computer Interface 1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection.
Standards
HD Video Input Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HD Video Output Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video Streaming Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards None
Video Sampling 4:2:2 YUV
Color Precision 10-bit
Color Space Rec 709
Colorspace Conversion Hardware based real time.
Product Specifics
Upstream Keyers 1
Downstream Keyers 1
Advanced Chroma Keyers 1
Linear/Luma Keyers 2
Transition Keyer DVE only.
Total Number of Layers 5
Pattern Generators 1
Color Generators 2
DVE With Borders and Drop Shadow 1
Interface Minimum monitor resolution of 1366 x 768.
Audio
Audio Mixer 6 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog Input Unbalanced stereo
Analog Input Delay Up to 8 frames
Input Impedance 1.8k
Max Input Level +6dBV
Mic Plug In Power Available on both 3.5mm mini jack connections.
Media Player
Media Players 1
Channels Fill and key for each Media Player.
Media Pool Still Image Capacity 20 with fill and key.
Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF.
Control
Control Panel Built in control panel. Software control panel included. Supports optional hardware panel.
Control Panel Connection Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM SDI supports direct USB-C connection.
Control Panel Compatibility Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel.
Control Panel Included ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 or 11.
Software
Software Updates Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Operating Systems Mac 11.0 Big Sur,
Mac 12.0 Monterey or later.
Windows 10 and 11.
Power Requirements
Power Supply 1 x External 12V power supply.
Power Usage 18W
Environmental Specifications
Operating Temperature 5° C to 40° C (41° - 104° F)
Storage Temperature -10° to 60° C (14° to 140° F)
Relative Humidity 0% to 90% non-condensing
  • ATEM SDI
  • External 12V DC power supply with international socket adapters
