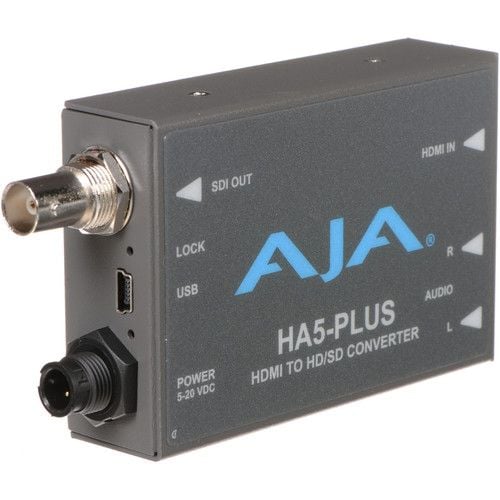

AJA HA5-Plus HDMI to 3G-SDI Mini-Converter

SKU: HA5-PLUS
PreOrder Available
Call for availabilty
AED 1,773.58
Excl. Tax: AED 1,689.12
  • Outputs HDMI Signals to SDI Devices
  • Supports Up to 1080p/60 4:2:2 10-Bit
  • Supports 8 Ch of HDMI Embedded Audio
  • Embeds RCA Audio on SDI Output
Description

AJA HA5-PLUS OVERVIEW

The AJA HA5-Plus HDMI to 3G-SDI Mini-Converter allows you to output an HDMI signal to an SDI monitor, recorder, or other device in up to 1080p/60 4:2:2 10-bit. Up to eight channels of HDMI embedded audio can be passed through to the SDI output, or you can connect independent RCA analog audio and embed it on the SDI output.

When you connect RCA audio, you can decide whether to output the HDMI embedded audio or RCA audio or assign particular channels of each using AJA's free-download MiniConfig control software. MiniConfig also provides detailed information about the current input and output formats, allows you to control all the parameters of the HA5-Plus, and lets you download firmware updates. It's compatible with Mac and PC and interfaces with the converter via a USB connection between the converter and the computer.

The HA5-Plus features a compact, portable, and rugged design and comes with a universal power supply with international plugs for use around the world.

Note:
HDCP content not supported on HDMI input.

98 FT HDMI RUNS

The HDMI input is equalized to support HDMI runs up to 98 ft using a 24 AWG cable.

3G-SDI OUTPUT WITH PLL CLOCK FILTERING

The 3G-SDI output features PLL clock filtering and ensures a low jitter output for solid image stability. An LED indicator shows the input source as either SD (green) or HD (red) for fast and easy signal identification.

RCA ANALOG AUDIO INPUT

Using the RCA L/R analog audio input, embed any 2-channel analog audio signal into the SDI output to maintain proper audio sync throughout the workflow.

DSLR SUPPORT

The HA5-Plus accepts progressive standard definition signals at 525p and 625p for compatibility with DSLR cameras, allowing the signal from those cameras to be easily incorporated into SDI workflows.

USB AND MINICONFIG SUPPORT

The HA5-Plus supports AJA's free-download MiniConfig software, which provides detailed information about the current input and output formats, allows you to control all the parameters of the HA5-Plus, and lets you download firmware updates. MiniConfig is compatible with Mac and PC and interfaces with the converter via a USB connection between the converter and the computer.

UNIVERSAL POWER SUPPLY

A universal power supply with international plug connections for use around the world is included.
get real warranty on AJA HA5-Plus HDMI to 3G-SDI Mini-Converter at Digi Tech Trading LLC
It's always easy to shop for Converters at Digi Tech Trading LLC because you can browse by best sellers, brand, price range, customer rating, or special offers. And you can take advantage of free shipping within UAE. Digi Tech Trading LLC AJA HA5-Plus HDMI to 3G-SDI Mini-Converter - your trusted source of filmmaking equipments
Reviews
Write Your Own Review
You're reviewing: AJA HA5-Plus HDMI to 3G-SDI Mini-Converter
loader
Loading...

You submitted your review for moderation.

Technical Specification

AJA HA5-PLUS SPECS

Video Input HDMI with embedded audio, up to 8 channels
Input Formats 525i, 625i, 525p, 625p, 480p, 576p
720p 50, 59.94, 60
1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080i 50, 59.94, 60

Note: HDCP content not supported
Video Output 3G-SDI with embedded audio
Output Formats 525i 29.97
625i 25
720p 50, 59.94, 60
1080i 25, 29.97, 30
1080p 23.98, 24, 25, 29.97, 30
1080p 50, 59.94, 60 - SMPTE 425-1 Level A Mapping structure 1 (1920x1080 4:2:2 10-bit YCbCr)
Audio Input 2-channel RCA-style analog audio (-10 dBV nominal)
Audio Output SDI embedded audio
Supported HDMI Cable Length 98 ft (30 m) using 24 AWG cable
Power Uses AJA Power Supply model DWP-U-R1 (included)
100-240 V, 50/60 Hz Universal input DWP-U-R1 +5 V DC regulated, 7.5 W capacity
Dimensions 4.6 x 2.4 x 1" (11.7 x 6.1 x 2.5 cm)
Packaging Info
Package Weight 1.455 lb
Box Dimensions (LxWxH) 10.2 x 5.85 x 3.75"
In the Box
  • AJA HA5-Plus HDMI to 3G-SDI Mini-Converter
  • AJA DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters
  • Limited 5-Year Warranty
