FEELWORLD F6 5.7" 4K HDMI On-camera Monitor With Tilt Arm & Power Output

In stock
  • 1920 x 1080 Native Resolution
  • HDMI 4K Input
  • 1400:1 Contrast, 460 cd/m² Brightness
  • Calibrated for Rec. 709 HD Color

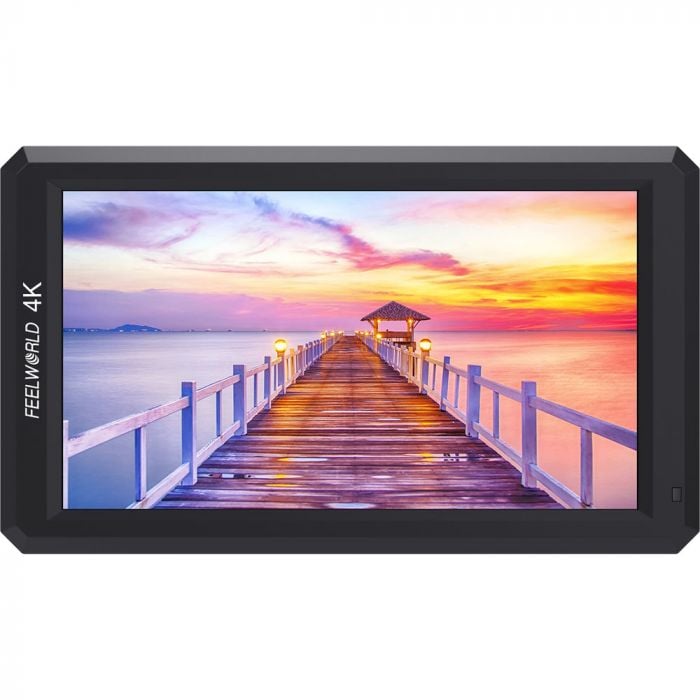

FeelWorld F6 Overview

The FeelWorld 5.7" Full HD HDMI On-Camera Monitor with 4K Support and Tilt Arm features a native resolution of 1920 x 1080 with a contrast ratio of 1400:1, and a maximum brightness of 460 cd/m². This IPS monitor enables you to accurately monitor your camera's output, and is calibrated to the Rec. 709 HD color standard to ensure accurate color reproduction. With a 170°-wide viewing angle and tiltable mounting arm, the F6 makes it easy for multiple members of the crew to watch the footage at the same time.

The top mounted control buttons provide for maximum screen real estate to view your footage, now that front-panel buttons and knobs are no longer cluttering up your monitor. The monitor supports an assortment of display and diagnostic tools including: Focus peaking, False Color, Zebra bars, Histogram, Image Flip, and Color temperature adjustment. In addition, the monitor supports aspect ratio display and features an anamorphic mode that supports 1.33:1 and 2.0:1.

Focus and Exposure Tools

The F6's focus and exposure tools include focus peaking indicators (red, green, and blue) that highlight parts of the image that are in sharp focus. In addition, false color tools make it easy to properly set exposure. The false color tools work by highlighting specific color ranges of luminance with a solid color overlay.


The F6 is equipped with a 4K HDMI input, allowing for connection to 4K cameras. The monitor's 3.5mm stereo jack enables you to plug in headphones to monitor audio. DC input and output ports are also provided, and a dummy battery adapter cable (available separately) can be used to extend runtime.

Flexible Installation

The F6 features three standard 1/4"-20 mounting points (top, bottom, and right side) for easy attachment to cameras and rigs. Sit it on a table using the built-in kick stand, or mount it on top of your camera for use as an HD viewfinder.

Tilt Arm Mounting

The monitor mounts onto your camera using the included tilt arm via your camera's shoe mount or 1/4"-20 thread. The tilt arm enables 180° of tilt for flexible positioning. A cold shoe on the tilt arm lets you secure equipment (such as a microphone, LED light, or wireless receiver) that would otherwise be displaced from the camera's accessory shoe.


For power, there's a 12 VDC input on the side and space for a battery plate on the back (rechargeable batteries available separately). There's also an 8 VDC output which can be used for powering your DSLR or mirrorless camera.


When shooting in bright sunlight, the included sunshade provides shade to ensure an effective monitoring environment.

Advanced Features

  • Brightness histogram
  • Peaking focus assist (red, green, blue)
  • False colors
  • Zebra exposure (1-100 IRE adjustable)
  • Nine-grid
  • Camera mode
  • Zoom (4x, 9x, 16x)
  • Anamorphic mode (1.3x, 2.0x, 2.0x magnification)
  • Pixel-to-pixel
  • Center marker
  • Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
  • Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
  • Marker color (red, green, blue, white, black)
  • Check field (red/green/blue/mono)
  • Image flip (H, V, H/V)
  • Image freeze
  • Zoom-all
  • U/D and L/R zoom
  • Color temperature adjustment
More Information
Manufacturer Feelworld
Write Your Own Review
You're reviewing:FEELWORLD F6 5.7" 4K HDMI On-camera Monitor With Tilt Arm & Power Output
Your Rating

FeelWorld F6 Specs

Screen Size5.7" / 14.5 cm
Display TypeIPS
Native Resolution1920 x 1080
Pixel Pitch0.0657 x 0.0219 mm
Aspect Ratio16:9
Brightness460 cd/m²
Contrast Ratio1400:1
Viewing Angle85°/85° (L/R)
85°/85° (U/D)
Connectors1 x HDMI (Video In)
1 x 12 VDC (Power In)
1 x 8 VDC (Power Out)
1 x 3.5 mm (Stereo Headphone Out)
1 x USB (Upgrades)
HDMI Format Support4096 x 2160p: 24
3840 x 2160p: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29/25/24/23.98
Mounting Interface3 x 1/4"-20 Threaded Holes (Top, Bottom, and Right Side)
Input Voltage7-24 VDC
Power Consumption8 W Max.
Operating Temperature-4 to 131°F / -20 to 55°C
Storage Temperature-22 to 149°F / -30 to 65°C
Dimensions6.1 x 3.5 x 0.9" / 15.4 x 9.0 x 2.3 cm
Weight0.4 lb / 200 g
Packaging Info
Package Weight1.65 lb
Box Dimensions (LxWxH)7.6 x 4.9 x 4.1"
  • FeelWorld 5.7" Full HD HDMI On-Camera Monitor with 4K Support and Tilt Arm
  • Sunshade
  • Sunshade Mounting Frame
  • HDMI Cable
  • Tilt Arm
  • Limited 1-Year Warranty
