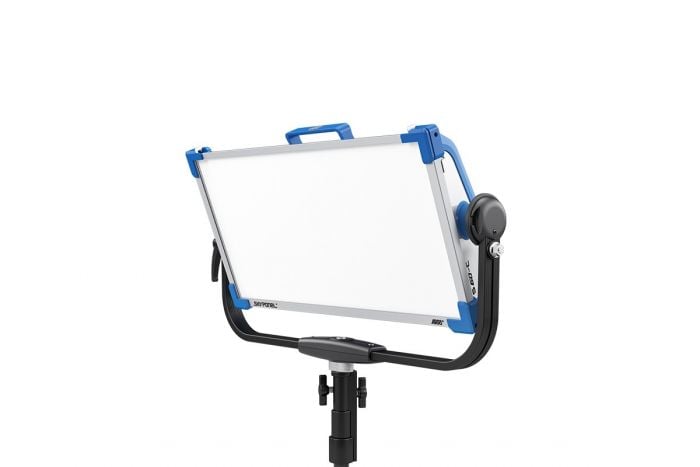

Arri SKYPANEL S60-C MAN (Schuco)

SKU
L0.0007064

SkyPanel is available in several sizes: the S30, S60, S120, and S360. The S60 is a mid-range model, featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications. The S120 is twice as long as the S60, but weighs... Read More

AED 24,108.00 AED 22,960.00
Pre-Order to secure your piece
Orders shipped within 3 business days.

Secure Checkout with...

SkyPanel is available in several sizes: the S30, S60, S120, and S360. The S60 is a mid-range model, featuring a light aperture of 645 x 300 mm and accommodating the vast majority of applications. The S120 is twice as long as the S60, but weighs nearly the same. Its larger light aperture makes a great soft light even better. The S30 is a smaller, more portable version; half the length of the S60, it is perfect for on-the-go mobile applications. The S360 is the largest and brightest SkyPanel with four times the output of the S60 and almost six times the aperture size. The S360 is perfect for lighting large areas with tuneable, soft light. S30 and S60 models are available in fully color tuneable and remote phosphor versions.

Unlike other tuneable fixtures, SkyPanel makes no sacrifice when it comes to light output. SkyPanel puts out a tremendous amount of light, in a soft and uniform beam field. Brighter than a 2 kW tungsten soft light or a 6 kW tungsten space light, the SkyPanel S60 has more than enough light for most applications. At the same time, the lamphead is able to perform beautifully at lower light levels. This range of illumination and color gives users an unprecedented amount of control.

Unique Features

  • Fully Tuneable from 2,800 K to 10,000 K
  • Vibrant Color Selection (RGB+W Color Gamut)
  • High Color Rendering
  • Low Power Consumption (420 W Nominal)
  • Tremendous Output - Brighter than 2 kW Tungsten Soft Light
  • Fully Dimmable from 0 to 100 %
  • Lightweight and Compact
  • Beautiful Soft Beam of Light
  • Interchangeable Diffusion Panels
  • Wide Range of Accessories Available
  • Thin Profile
  • On-Board Battery Connection (23 - 36V DC)
  • Onboard Simple Control Panel
  • Onboard DMX In and Out
  • RDM Implementation
  • USB-A Connection for Firmware Updates
  • EtherCon port for network connectivity
  • Available in Blue/Silver and Black
  • Fan Mode Selection
  • External Lightweight PSU
  • powerCON TRUE1 Power Connector

    Models

Order No.

Description

L0.0007063

S60-C, Manual (Edison)

Blue/Silver, 3m DC Cable, S60 PSU, PSU Rail Mount, Standard Diffusion Panel, Edison powerCON

L0.0007064

S60-C, Manual (Schuko)

Blue/Silver, 3m DC Cable, S60 PSU, PSU Rail Mount, Standard Diffusion Panel, Schuko powerCON

L0.0007065

S60-C, Manual (China)

Blue/Silver, 3m DC Cable, S60 PSU, PSU Rail Mount, Standard Diffusion Panel, Chinese powerCON

L0.0007066

S60-C, Pole Op (Bare Ends)

Blue/Silver, 1m DC Cable, S60 PSU, PSU Rail Mount, Standard Diffusion Panel, Bare Ends powerCON

L0.0007067

S60-C, Pole Op (Bare Ends)

Black, 1m DC Cable, S60 PSU, PSU Rail Mount, Standard Diffusion Panel, Bare Ends powerCON

get real warranty on Arri SKYPANEL S60-C MAN (Schuco) at Digi Tech Trading LLC
It's always easy to shop for Panel Lights at Digi Tech Trading LLC because you can browse by best sellers, brand, price range, customer rating, or special offers. And you can take advantage of free shipping within UAE. Digi Tech Trading LLC Arri SKYPANEL S60-C MAN (Schuco) - your trusted source of filmmaking equipments
Write Your Own Review
You're reviewing:Arri SKYPANEL S60-C MAN (Schuco)
Your Rating
Lamphead S60-C
Optical System: Soft Diffusion Panel
Light Aperture: 645 x 300 mm / 25.4 x 11.8"
Beam Angle: 115º (Half Peak Angle)
Weight: Manual Version: approx. 13 kg / 29 lbs
Pole Op Version: approx. 14 kg / 31 lbs
Packed Weight: Manual Version: approx. 21 kg / 46 lbs
Pole Op Version: approx. 22 kg / 49 lbs
Size w/ spigot (H x W x L): 566 x 133 x 825 mm / 22.3 x 5.2 x 32.5"
Size w/o spigot (H x W x L): 433 x 133 x 825 mm / 17 x 5.2 x 32.5"
Packed Size (H x W x L): 460 x 300 x 856 mm / 18 x 11.8 x 33.7"
Handling: Aluminium Yoke, High Strength Tilt Lock
Pole Operation Option (Pan & Tilt)
Mounting: 28 mm Spigot (Junior Pin)
Tilt Angle: +/- 90º
Lamphead Voltage Input: 48 V DC
Power Consumption: 420 W Nominal, 450 W Maximum
Lamphead Power Connection: Male 3-Pin XLR - 15 Amp (Pin 1: Negative / Pin 2: Positive)
Battery Connector: Male 4-Pin XLR - 10 Amp (Pin 1: Negative / Pin 4: Positive)
Battery DC Voltage Range: 23 to 36 V DC
Battery Mode Light Output: 50 % of total output
White Light: 2,800 K to 10,000 K continuously variable correlated color temperature
Colored Light: Full RBG+W Color Gamut with Hue and Saturation Control
Color Temperature Tolerance: +/-100 K (nominal), +/-1/8 Green-Magenta (nominal)
Color Rendition: CRI Average > 95
TLCI Average > 90
Green-Magenta Adjustment: Continuously adjustable (Full Minusgreen to Full Plusgreen)
Dimming: 0 to 100 % continuous
Control: On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net
Remote Device Management (RDM*): DMX Setup, Hour Counter and Standard RDM Commands
Software Interface: Ethernet: DMX Setup, Fixture Status and Firmware Upgrade through PC, Mac USB-A: Software upgrade via flash drive
Housing Color: Blue/Silver, Black
Ambient Temperature Operation: -20 to +45ºC / -4 to +113ºF
Protection Class / IP Rating: III / IP20
Estimated LED Lifetime (L70): 50,000 hours
Estimated Color Shift Over Liftetime +/- 5 %
Certifications: CE, CB, ENEC, cNRTLus, FCC, PSE

Power Supply Unit S60 PSU
Power Supply Input Range: 110 to 240 V ~, 50/60 Hz
Power Supply Output Range: 48 V DC
Power Input Connection: powerCON TRUE1 (Bare Ends / Schuko / Edison cables available)
Power Output Connection: Female 3-Pin XLR - 10 Amp (Pin 1: Negative / Pin 2: Positive) powerCON TRUE1 (mains power through)
Weight: 3.5 kg / 7.7 lbs
Dimension: 383 x 191 x 91 mm / 15 x 7.5 x 3.6"
Control: On-Board On/Off Switch
Mounting: SkyPanel PSU Super Clamp Adapter / Rail Mount Adapter
Certifications: CE, CB, ENEC, cNRTLus, PSE
* RDM Available in Future Firmware Note: All specifications are nominal / typical values.
